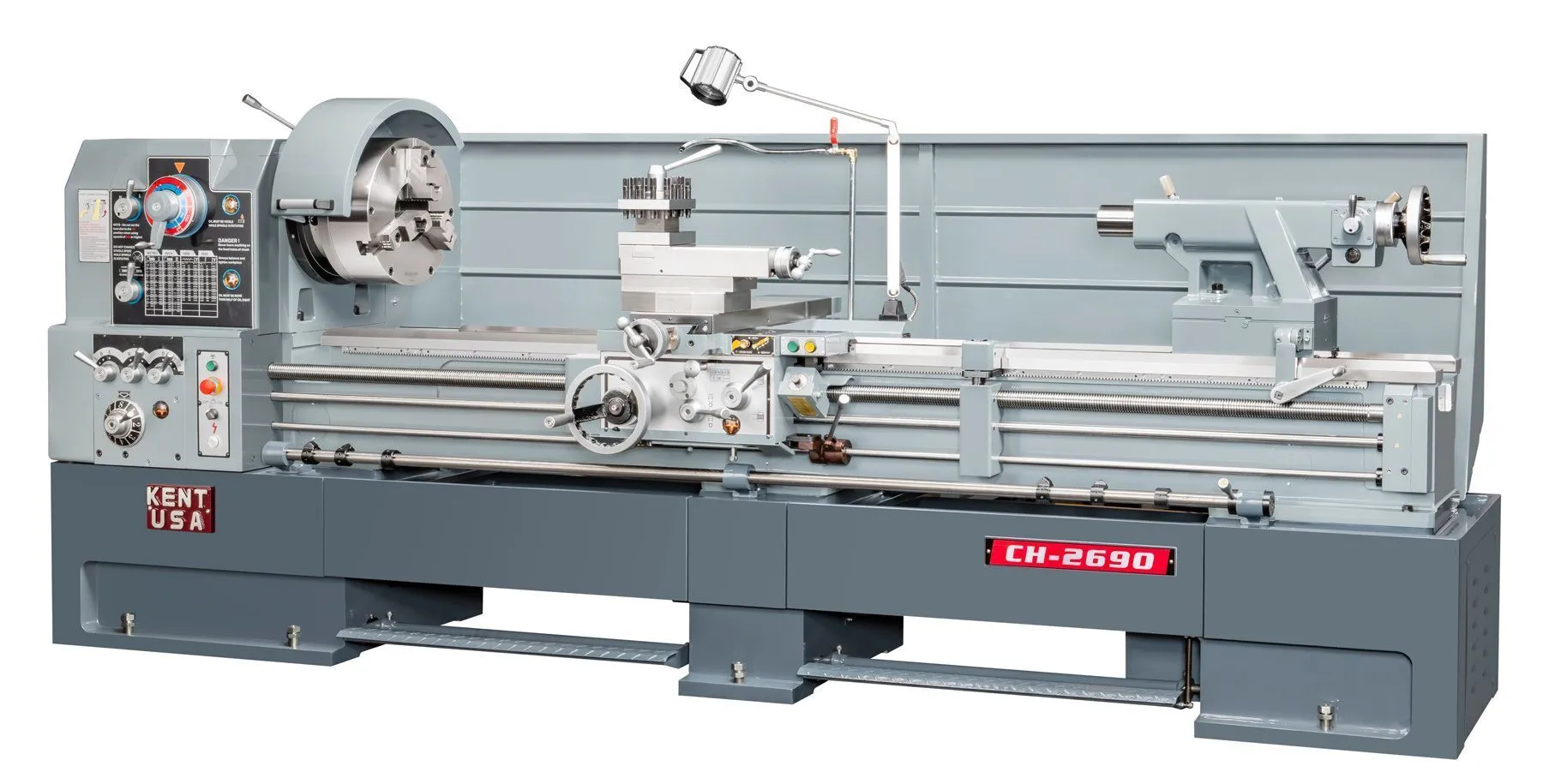

Kent USA precision lathes are designed for turning medium to heavy workpieces with tighter tolerances. These reliable workhorses feature heavy-duty construction throughout to cut big and heavy workpieces. Our precision lathes are built with a solid full-length casting base. In addition, front-loading chip tray for easier cleaning, adjustable overload feed clutches, and quick reversal feed from apron – all of which come standard.
Dependable and powerful, these highly accurate manual lathes are built for powerful machining and minimal downtime. Kent USA Precision Series Lathes are offered with 11” x 18” to 44” x 320” work capacities, 1.56″ to 12″ spindle bores, and up to 20 HP of spindle motors.
| Swing | 26" | 660.4 mm |
| Centers | 120" | 3,048 mm |
| Spindle Bore | 4.1" | 104.14 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,200 RPM | 1,200 RPM |
| Swing Over Cross Slide | 17.5" | 444.5 mm |
| Dimensions | 144" x 45" x 76" (approx) | 144" x 45" x 76" (approx) |
| Weight | 7500 | 7500 |
• 15 HP Spindle Motor, 12-Speeds
• 4.1” (104mm)Spindle Through Hole
• Solid One Piece Full Length Casting Base and Bedways for Maximum Rigidity
• Spindle Jog Button Control
• One-shot Lubrication for Apron, Multi-position Adjustable Feed Position Stops
• Dual Inch/Metric Calibrated Tailstock
• Dual Inch/Metric Dials
• 3-jaw chuck 16”, made in Taiwan)
• Steady rest(10”, roller)F
• Follow rest(40-184mm)
• Thread chasing dial
• 4 position tool post
• Coolant system with full-length splash guard
• 4 position carriage stop
• 2 speed tailstock
• Z-axis Rapid travel
• Dead center x 2 pcs
• LED worklight
