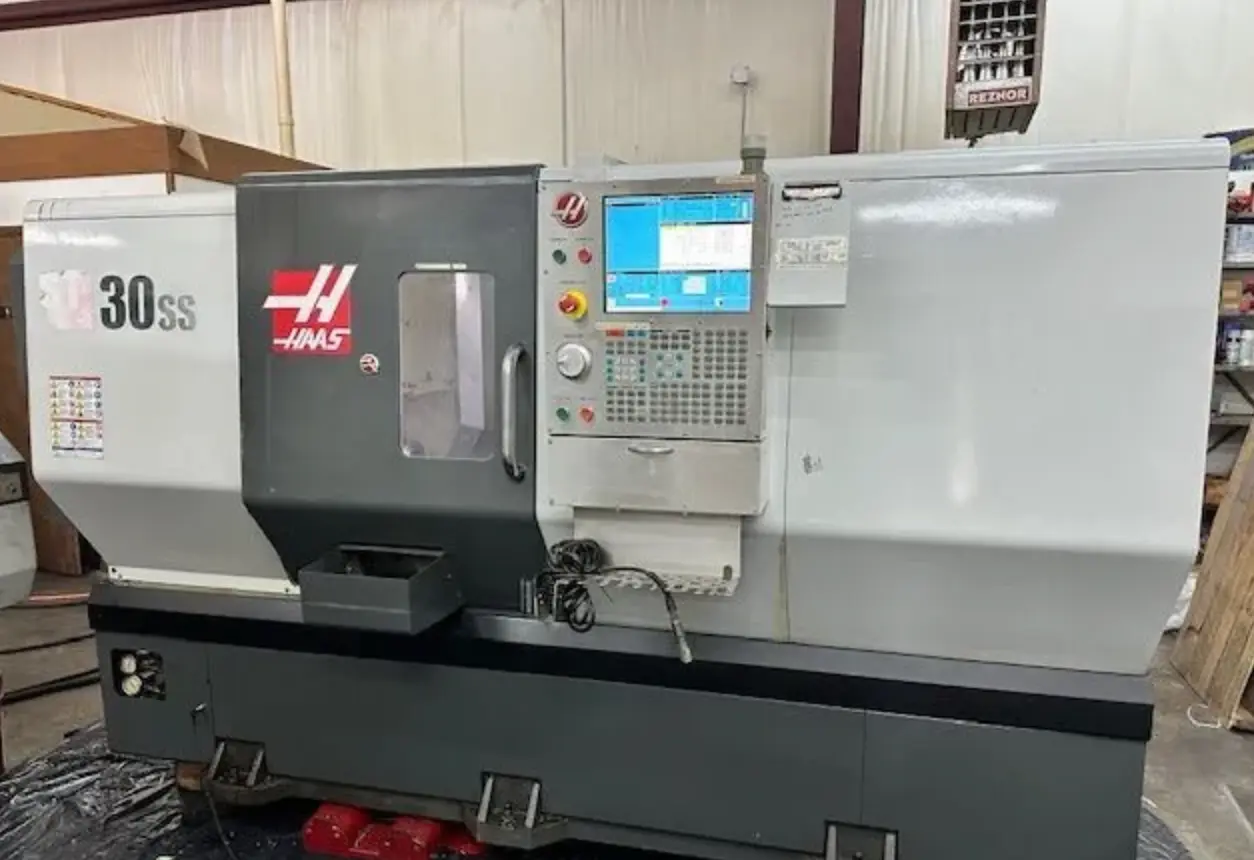

Used CNC Lathe featuring a 31.75" swing, 26" machining length, and 30 hp power. Equipped with HAAS CNC control, C-axis live tooling, hydraulic tailstock, and high-pressure coolant.
| Swing | 31.75" | 806.45 mm |
| Machining Length | 26" | 660.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 16" | 406.4 mm |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 171" x 99" x 98" | 171" x 99" x 98" |
| Weight | 14,000 lbs. | 14,000 lbs. |
Spindle Nose A2-6
Spindle Bore 3.5"
Tools 24
Milling Speed 6000 RPM
Rapid Traverse Rates (X & Y / Z) 472 / 1200 IPM
X-Axis Travel 12.5"
Z-Axis Travel 23"
C-Axis Index .001 Degrees
Spindle Torque 275 ft. lbs.
HAAS CNC Control
• 12" Color LCD
• C-Axis Live Tooling Capability
• 12" LMC PC-12-93-02 Hydraulic Chuck
• Royal S30 Collet Chuck
• Chip Conveyor (Hinge Type Side Exit)
• Auto Parts Catcher
• Tool Presetter
• Fully Programmable Hydraulic Tailstock
• Hybrid Bolt-On Turret
• High Pressure Coolant (300 psi)
• Barfeed Interface
• Rigid Tapping
• Spindle Orientation
• Early Detection Power Failure
• Set of Spindle Liners
• (2) Sets of Hard Jaws
• Approx. (40) Sets of Machined Soft Jaws
• Approx. (14) ER32 Collets
• (6) Turning Holders (0.75")
• (3) Facing Holders
• (8) Boring Bar Holders
• (1) Live Center
