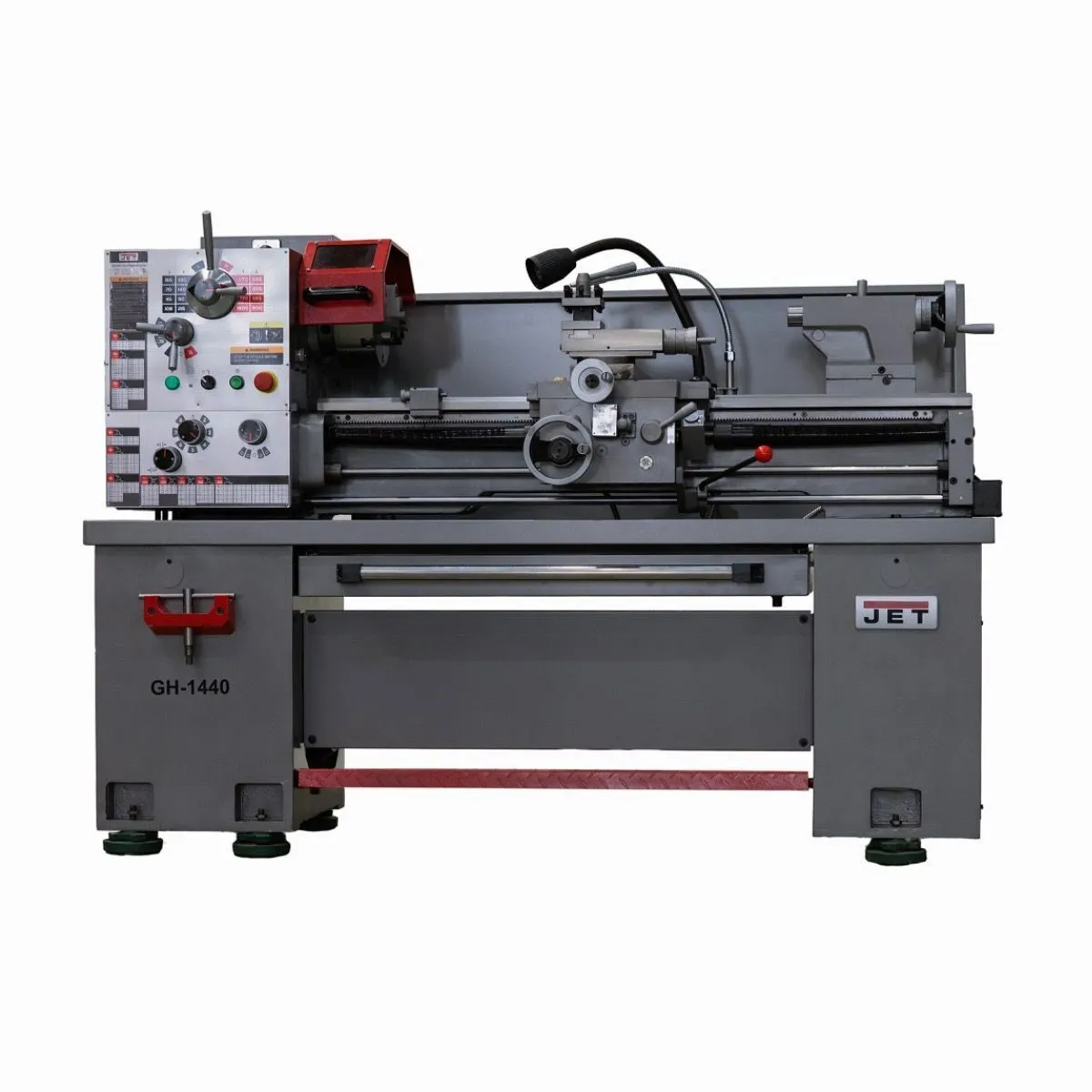

The JET GH-1440-1 14" x 40" Gear Head Engine Lathe is designed to help shops do more per shift with safer operation, clean containment, and dependable turning performance. Whether used in production machining, repair work, fabrication, or training environments, this machine balances power, capacity, and operator-focused safety.
| Lathe Type | Geared Head | Geared Head |
| Swing Over Bed | 14" | 355.6 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 2" | 50.8 mm |
| Spindle Nose | D1-5 | D1-5 |
| Number Of Spindle Speeds | 8 | 8 |
| Range Of Speeds | 90–1800 | 90–1800 |
| Number of Inch Threads | 38 | 38 |
| Motor | 3 hp | 2.2 kW |
| Phase | 1 | 1 |
| Voltage | 230v | 230v |
| Dimensions | 79 x 28-1/2 x 30 in. | 79 x 28-1/2 x 30 in. |
| Weight | 1,236 lbs. | 1,236 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
