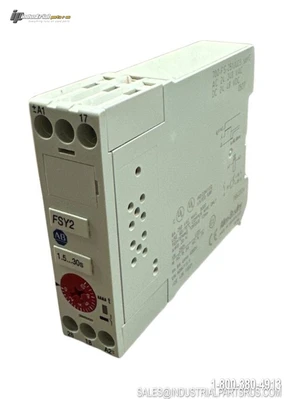

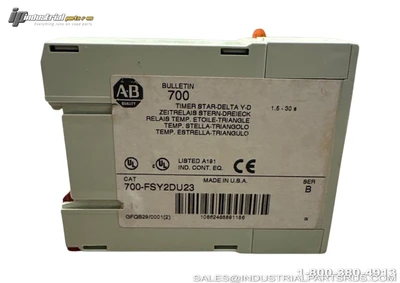

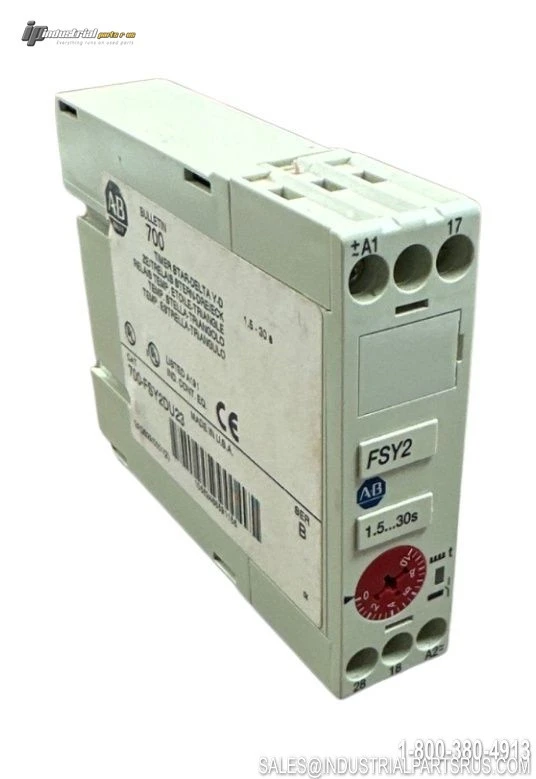

USED ALLEN-BRADLEY 700-FSY2DU23
Overview
Description
The Allen-Bradley 700-FSY2DU23 is a high performance timing relay specifically designed for star-delta motor starting applications. This dual voltage relay operates on 24-48V DC or 24-240V AC and provides precise timing control with a range of 1.5 to 30 seconds.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
700-FSY2DU23
Product Type
High Performance Timing Relay
Application
Star-Delta Motor Starting
Timing Range
1.5 to 30 seconds
Control Voltage
24-48V DC / 24-240V AC 50/60Hz
Contact Configuration
2 NO (Normally Open) Contacts, 1 Side Common
Contact Rating
8A
Input Amperage
1 mA
Power Consumption
0.5W at 24VDC, 5VA at 240VAC
Mounting Type
DIN Rail/Panel Mount
Operating Cycles
30,000,000 Mechanical
Temperature Range
-25°C to +45°C Enclosed, -25°C to +60°C Open
Reset Time
50 ms
Voltage Tolerance
-20% to +20% (DC), -15% to +10% (AC)
Standards
CCC, CE, MARINE
Weight
0.29 lbs
Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI0538
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail/Panel
Current Rating: 8A
Manufacturer: Allen-Bradley
Part Number: 700-FSY2DU23
Series: 700-FS
Shelf: K-41
Model: 700-FSY2DU23
Coil Voltage: 24-240V
MPN: 700-FSY2DU23
Type: Time Delay Relay
