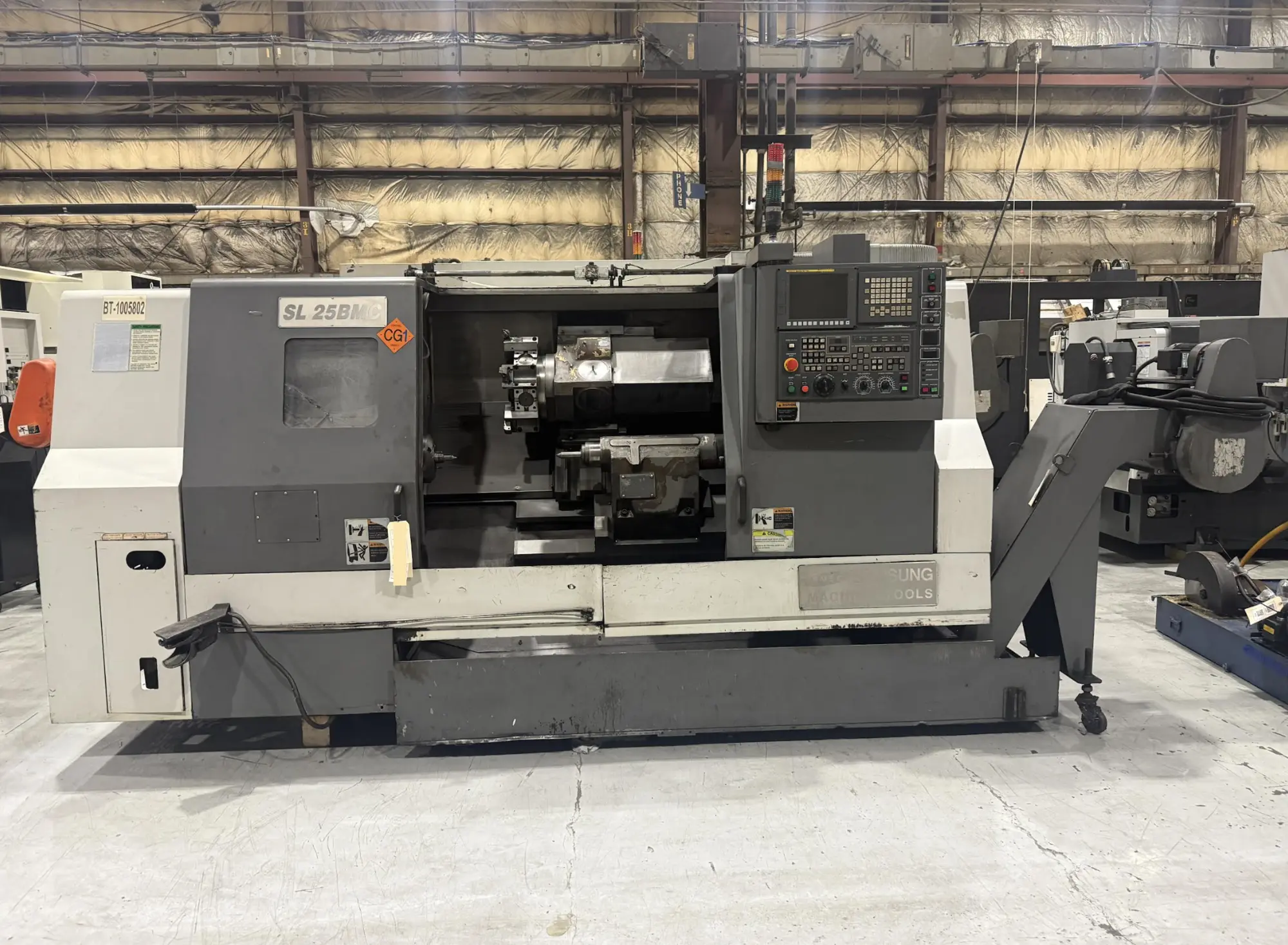

CNC Lathe, used. Features 25.06" swing, 3-axis, 10" chuck, 30 hp, 3,500 RPM, max turning dia 13.78". Equipped with Fanuc 0i-TD control, box ways, and coolant system. Includes live tooling and toolholders.
| Swing | 25.06" | 636.52 mm |
| # Axis | 3 | 3 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 13.78" | 350.01 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 14400 lbs | 14400 lbs |
X Axis Travel 8.66 in
Z Axis Travel 42.91 in
Rapid Traverse (X/Z) 709/945 ipm
Turret Capacity 12
Center Distance 44.30 in
- Fanuc 0i-TD CNC Control
- Box Ways
- Tool Eye
- Chip Conveyor
- Coolant Tank & Pump
- (1) Axial (1) Radial Live Tool Holder
- Misc. Static Toolholders
