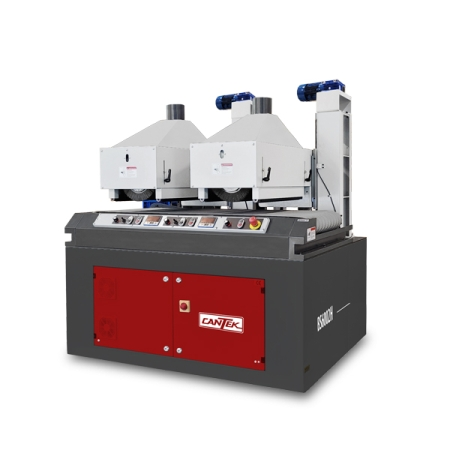

BS600-2H | Cantek | Wire Brush Machines

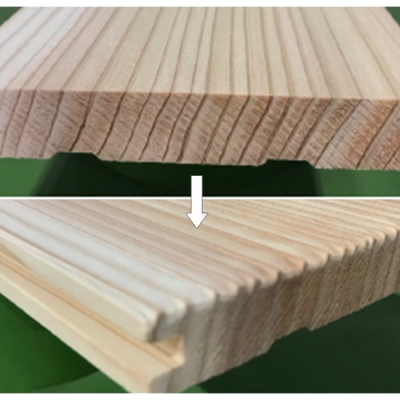

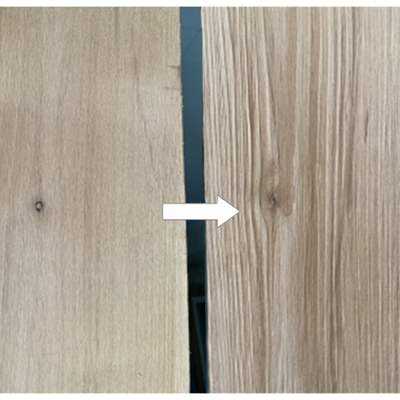

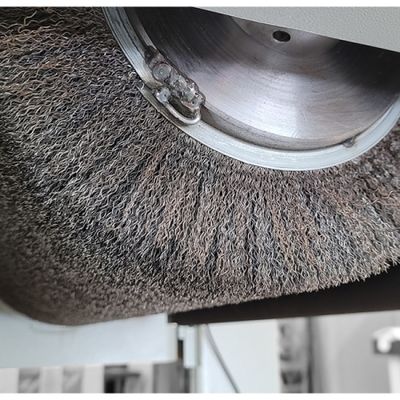

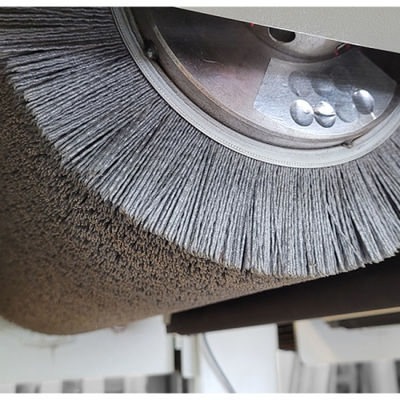

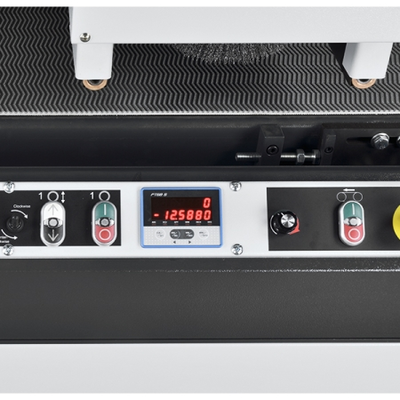

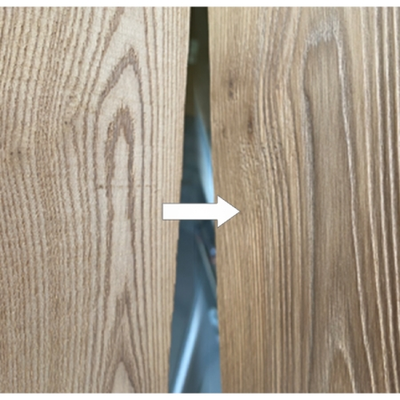

Produce distressed wire brush flooring and paneling with ease! The Cantek BS600-2H 2-head wire brush machine is designed to remove the soft grain between the growth rings to produce distressed wood flooring, paneling, and more. Following the wire brush head is a nylon brush that is designed to remove any raised fibers that appear from the wire brushing. With variable frequency inverters to control the brush RPM and feed speed you have ultimate control over your finished aesthetic.Key AdvantagesMachine ControlsErgonomically located machine controls for operator convenience. Controls include: variable feed speed & RPM controls, individual motor on/off switches, emergency stop, up/down buttons, and forward reverse switch. The digital control displays the material thickness setting, brush RPM, and brush head amp draw for load monitoring.

Maximum working width
23.6″
Maximum working thickness
11.8″

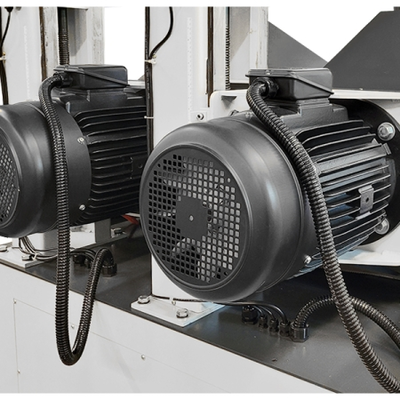

Spindle motors
10HP x 2 pcs
Spindle RPM
200 ~ 1200 RPM

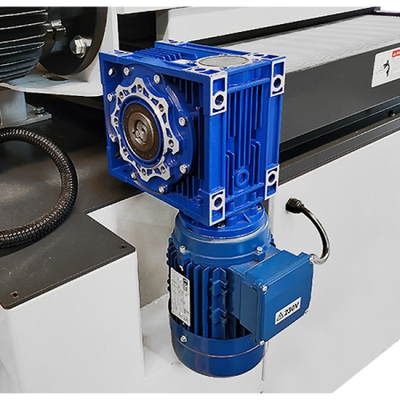

Feed motor
1 HP
Feed speed (variable)
7~39 FPM
Elevation motors
0.5 HP x 2 pcs
Machine dimensions
65.8” x 57” x 82.7”
Shipping dimension
75” x 64” x 89”
Machine weight
2368 lbs
Shipping weight
2750 lbs
Dust ports
2 x 4.75”
Power requirements
230/3/60 = 61 amps or 460/3/60 = 30.5 amps
