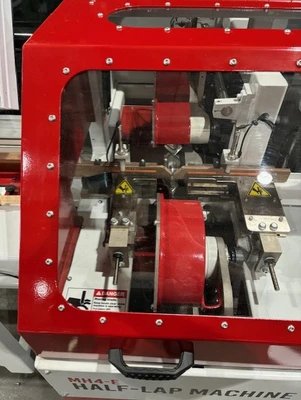

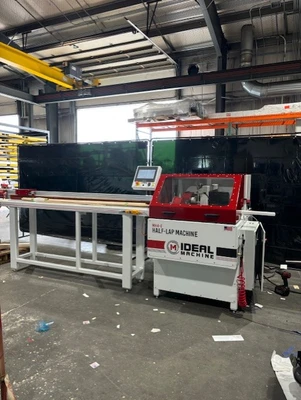

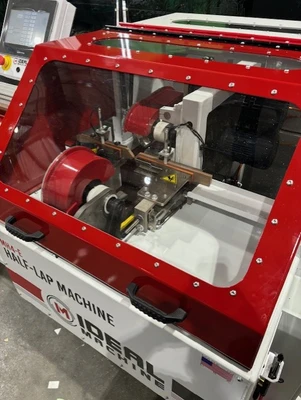

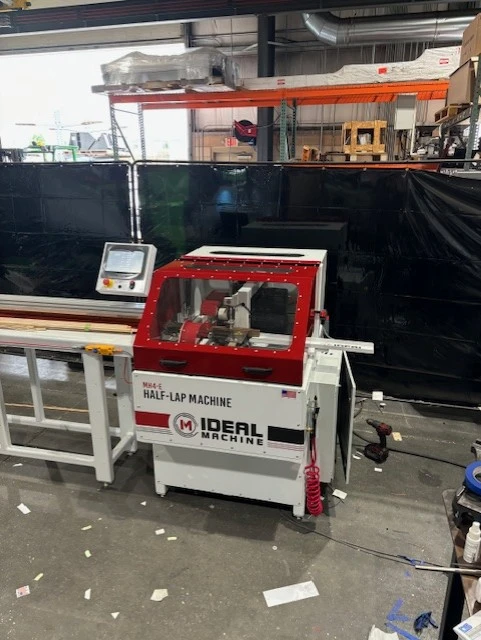

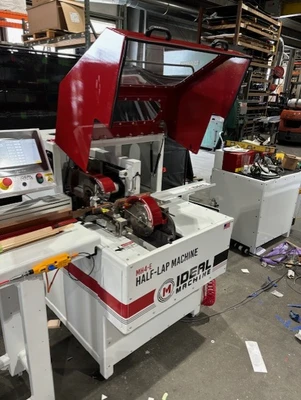

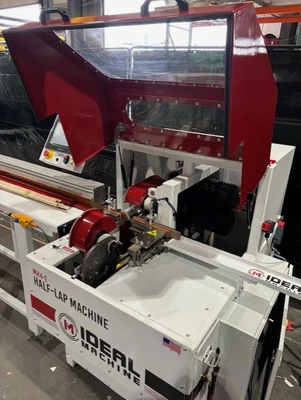

MH-4 | Ideal Manufacturing | Half Lap Machines

The half-lapped joint consists of two pieces of material, the horizontal and vertical pieces that create a strong, interlocking joint. Regardless of the profiles chosen, the cut is the same, and changeover and tooling costs are reduced which increases your production efficiency. 3 Efficient Half Lap Joint ModelsIdeal Machine offers 3 different Half Lap Machine models to meet your specific shop needs.

4.5HP 220-480V
•Motors: 3 @ 1.1Kw ea. (1.5HP ea.)
•Voltage: 220-480 V
•RPM: 6,200 RPM @ 60Hz
•Air: 6 Bar (85 PSI)
•Tooling: Insert Carbide
•Dado: 200mm (7.875”)
Profile: 140mm (5.500”)
•Minimum Profile:
•Wide: ¼”
•High: ¼”
Maximum Profile:
•Wide: 1.5”
•High: 1.5”
Dust Collection: 6” Diameter
Cycle Time: 4-6 Seconds
(Tooling Not Included)
