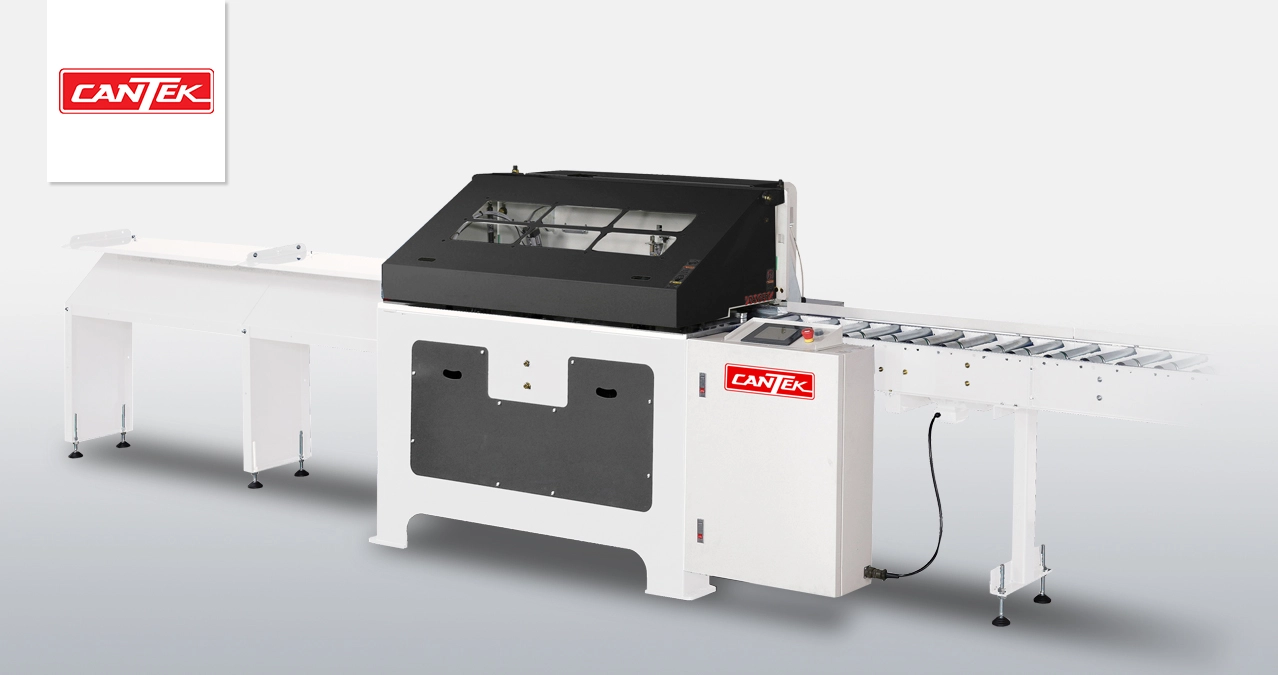

EM12 | Cantek | End Matchers

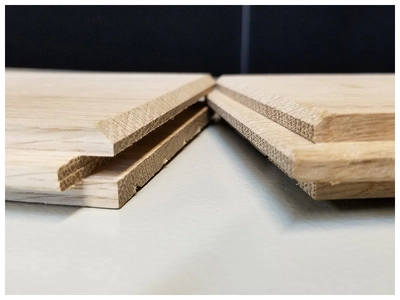

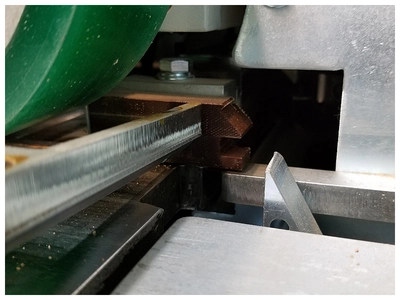

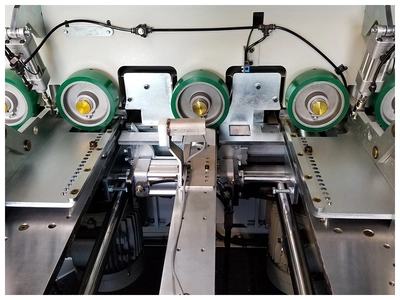

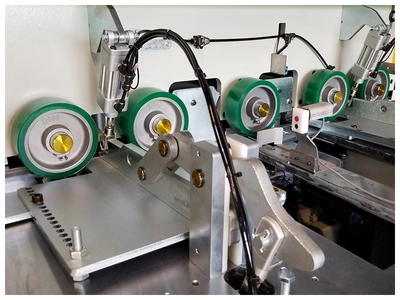

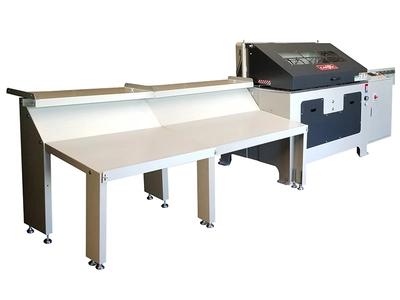

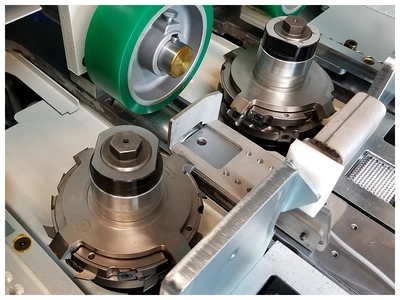

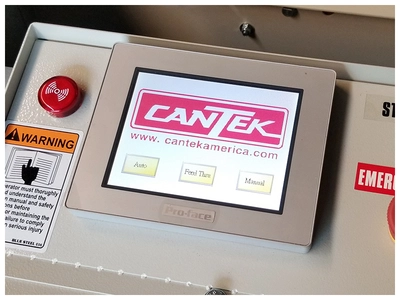

Continuous through feed end matcher producing tongue and groove on flooring & paneling. The Cantek EM12 End Matcher is specially designed for machining tongue and groove (with or without bevels) on hardwood flooring and wall/ceiling paneling up to 12” wide. Its compact design with continuous through feed system allows for maximum output in a small space. Equipped with a user-friendly touch screen interface allow for simple operation with excellent performance and error diagnostics. The dual counter-rotating cutterheads produce both the tongue and groove simultaneously ensuring a perfect match. The anti-tear-out blocks and counter rotation of the heads ensure optimum cut quality without chipping or blowout. The insert style segmented cutterheads can be adjusted according to your desired tongue / groove thickness and can perform a micro-bevel or not. The variable speed infeed conveyor, variable feed speed, and variable cross-cutting speed allow the operator full control according to the type and size of material being run. The innovative clamps allow for simultaneous top and side clamping to ensure pieces are perfectly square for consistent end matching results.

230/460V 3PH 50.4/25.2AMPS
CAPACITY:
Width|1.6″~12″
Thickness|0.4″~1.38″
Min. Length|12”
Max. Length|Unlimited
FEED:
Feed Speed – max.|295 FPM
Cutting Speed – approx. throughput|77 FPM (Based on 6.5′ board)
Powered Infeed Table – Std.|173″ (14.4’) long – longer optional
Outfeed Table – Std.|86.6” (7.2’) long – longer optional

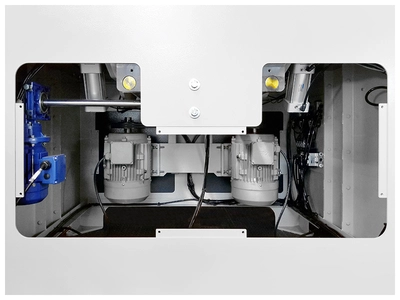

MOTORS:
Cutterheads|10Hp x 2
Feed System|1 Hp
Cutter Drive|1/2 Hp
ELECTRICAL:
Power|230, 460 or 575/3/60
Control Voltage|24 VDC
Connected Load|21.5HP
Full load amperage (FLA)|230/3/60 – 50.4 Amps
|460/3/60 – 25.20 Amps
CLAMPING:
Clamping|Top & Side
OTHER DATA:
Spindle Dia.|40mm
Dust Collection Outlet|6” diameter
Compressed Air Requirements|85PSI – approx. 12 CFM
Machine Dimensions (LxWxH)|91” x 51.5″ x 63″
Machine Weight|2530 lbs.
