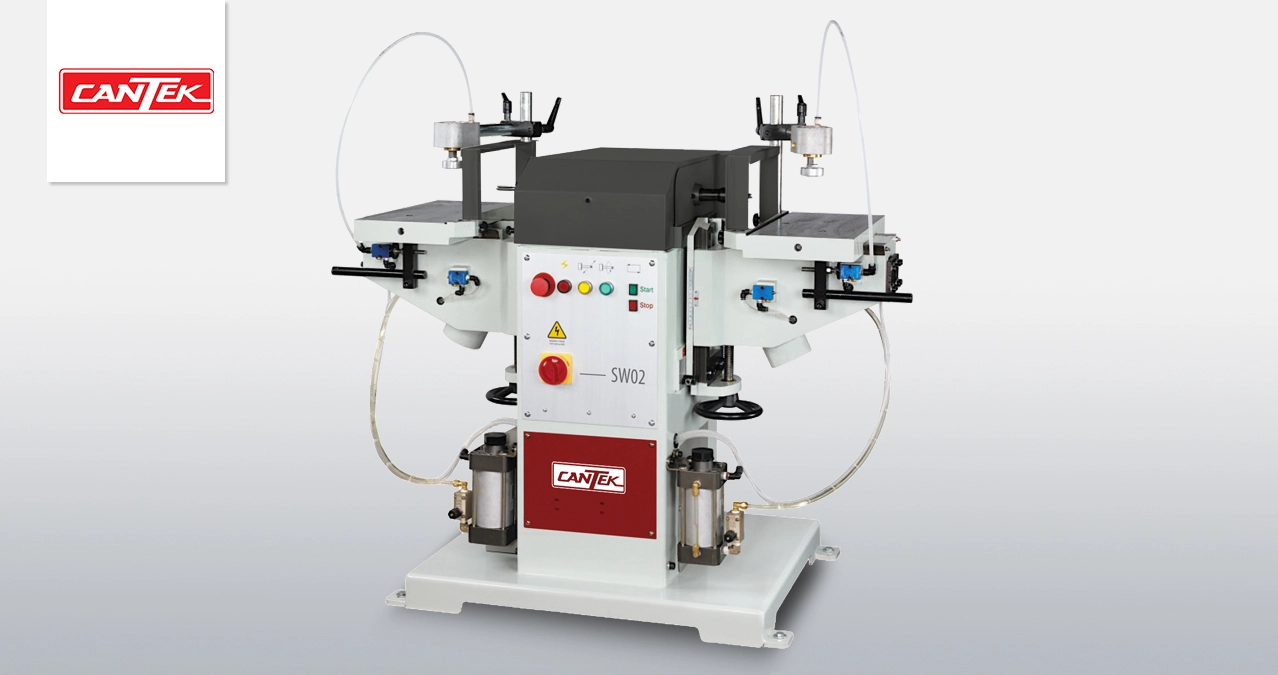

SW-02 | Cantek | Mortisers & Tenoners

The Cantek SW-02 Oscillating Slot Mortiser is a dual table mortising machine capable of producing horizontal or bevel mortises up to 4.72” long x 1.18” high x 3.15” deep. Paired with the Cantek SW-K6 round tenoner make these the ideal solution for furniture or frame production.  The dual table setup permits two operators to work simultaneously for higher throughput and increased productivity. The mortise size is adjustable to your needs and the tables can be adjusted in height to easily locate the mortise precisely for tight and flush joints.  A pneumatic clamp holds the workpiece firmly in place.

3HP 230V 3PH
Mortise Oscillation Length|Max. 120mm
Mortise Slot Thikness|Max. 30mm
Mortise Slot Depth|Max. 80mm
Hourly Production|500～800 Slots
Table Area|270mm×482mm
Table Tilt（Horizontal)|0˚～－20˚
Table Vertical Movement|0～100mm
Spindle Rotation|9000R.P.M.
Oscillations per minute|67～400 strokes
Spindle Motor|3HP（2.2KW）
Oscillation Motor|0.5HP（0.37KW）
Machine Dimensions（L×W×H|850×1300×1270mm
Net Weight|360KGS
