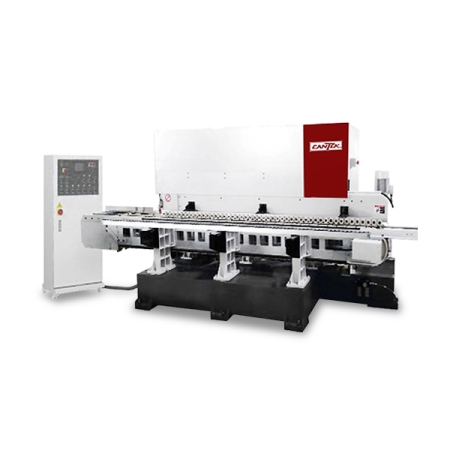

SET100 | Cantek | Mortisers & Tenoners

Economical solution for cutting tenons and components for general woodworking, door and window components. The Cantek SET100 Single End Tenoner is designed for tenoning and general woodworking tasks. This custom-configured machine is tailored to your specific requirements. The solid construction combined with the latest electronic technology facilitates fast and easy changeovers with precise repeatability, making the SET100 the solution for your tenoning processes.Key AdvantagesTilting function ±90˚ on scoring, main saw, and moulding stationsNon-through grooving function on 1st Moulding Units with jumping functionInfeed and outfeed safety guards, as well as enclosed cabinet with safety interlocks on access doorsPrecision chain track assemblies with manually retractable stop dogs to ensure perfect “squareness”Adjustable infeed fence determines stock removal lengthAutomatic braking of saw blades and moulding headsPrecision digital readouts for adjusting the workpieces accuratelyThe feed conveyor is equipped with needle bearings to increase wear resistance.Choice of rubber or phenolic surfaces on chain padsSchneider electrical components to UL/CSA standardMechanical digital readouts for accurate positioning of each working unitOptional HSK spindles for even faster changeovers

Maximum working thickness
100 mm (4”)
Working length
100 mm (4”) and above
Double Feed Link-Chain
Feed motor horsepower
3 HP (optional 5 HP)
Feed Speed
5-25 m/min (16-82 Ft/min)
Distance between dogs
400 mm (15.75”) optional 300 mm (11.8”) or 200 mm (7.9”) or without dogs
Working Station: Molding unit 1 with jumping function
Motor horsepower
7.5 (optional 10 HP)
Spindle speed
4500-8000 (optional speed increase to 10,000) RPM
Spindle Diameter
40mm (optional 50 mm)
Cutter Diameter
190-250 mm (7.48-9.84”)
Working Station: Molding unit 2 without jumping function
Motor horsepower
10 HP
Spindle speed
4500-8000 (optional speed increase to 10,000) RPM
Spindle Diameter
40 mm (optional 50mm)
Cutter Diameter
190-250 mm (7.48-9.84”)
Working Station: Profile Sanding units (maximum 3 units)
Motor horsepower
3 HP
Spindle speed
variable to 1800 RPM
Machine weight
Net weight
4250 kg (9,370 lbs.)
Gross weight
4600 kg (10,142 lbs.)
Dimensions
Machine size
4110 mm x 1620 mm x 1900 mm (161.8” x 63.77” x 74.80”)
Packing size
4230 mm x 1800 mm x 2120 mm (166.55” x 70.87” x 83.46”)
