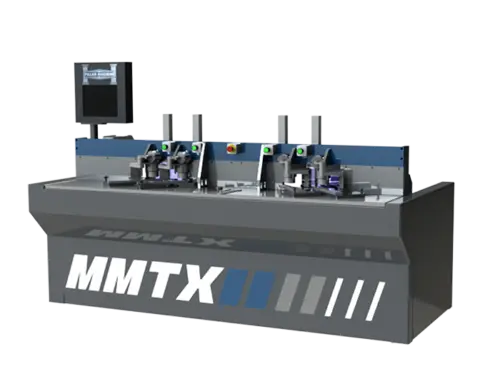

MMTX | Pillar | Mortisers & Tenoners

The MMTX is a full 6 Axis CNC machining center used for producing high quality miter joints used in cabinet door manufacturing. This machine produces between 400-500 doors per 8 hour shift with one operator.

230/460V 3PH
•2 each, 3-Axis control carriages for high quality joints and flexibility in machining various sizes of profiles. (X, Y and Z)
•4 working zones
•3 HP high frequency spindle for mortise (18,000 RPM)
•6 HP high frequency spindle for tenon (18,000 RPM)
•6 HP high frequency spindle for miter on mortise side (18,000 RPM)
•1″ x 3.5″ machining capability (larger sizes available upon request)
side clamps for optimal part control
•Heavy duty 3900 lb. frame
•15″ industrial color touchscreen for creating and selecting programs
