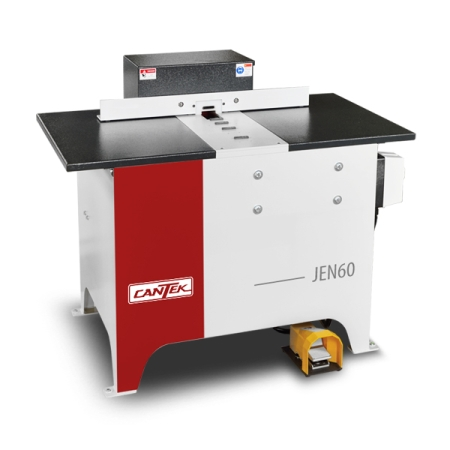

JEN60 | Cantek | Drawer Notchers

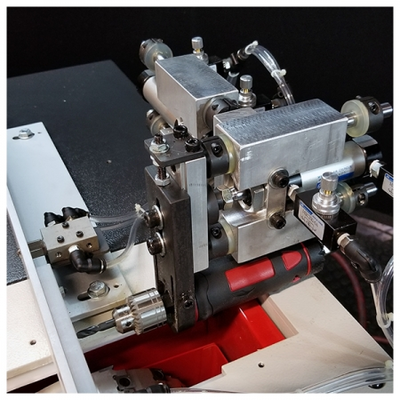

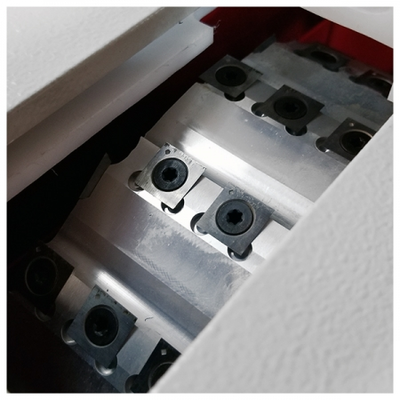

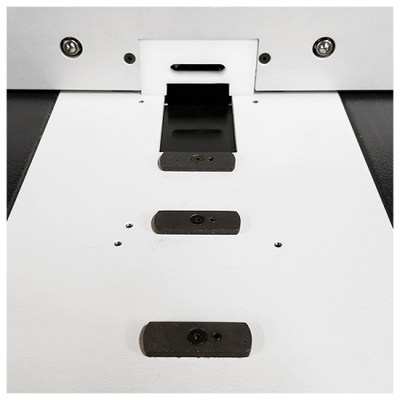

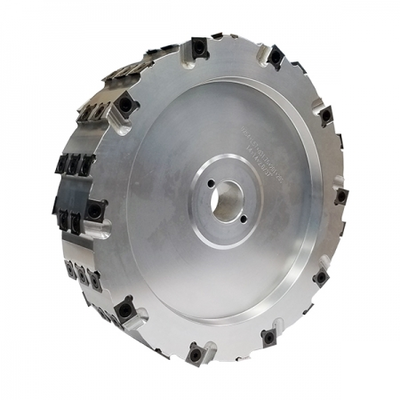

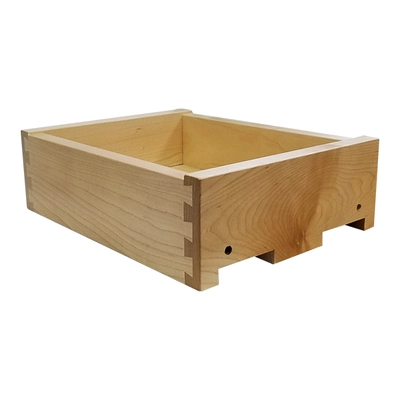

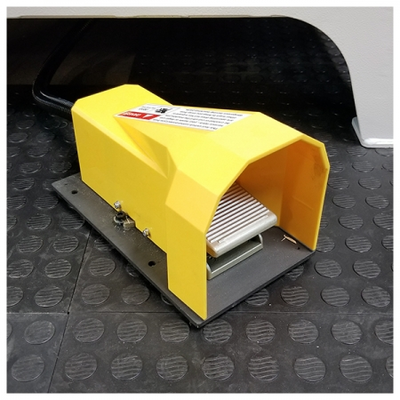

Adding undermount hardware to your cabinet drawers just got easier. The Cantek JEN60 Drawer Notcher is designed to both notch and drill drawer boxes to install undermount soft-close drawer slides. The operation of the machine is simple with a self-indexing drilling unit that’s determined by the position of the drawer for either left or right notching. With a cycle time of approximately 10 seconds per drawer, you can achieve a high throughput and save time for other important tasks.Key AdvantagesPneumatic cutter & drill stroke by foot pedal operation.Cutter stroke and drill speed are adjustable for optimum finish resultsDrill will automatically position for both left and right drawer notches by activating a switch in the fenceMachine will not cycle unless a drawer is up against the switch for safe operationInsert knife cutterhead with solid carbide inserts for optimum finish results and long tool life2 ¼” (57mm) wide cutter allows for a wide range of undermount slidesComes with insert cutterhead with inserts and ¼” (6.3mm) solid carbide drill bit.Capable of notching up to 220 drawer boxes (both left and right) per hour.

230V 3PH
Main cutter motor
3 HP (230/3/60 or 460/3/60) | 2HP (230/1/60)
Notch dimensions
2 ¼” (57mm) x 0.5” high
Cutterhead diameter
10″
Drill diameter
¼”
Table size
49″ x 22″
Table height from floor
32″
Dust port
2 x 4″ (1,340 CFM requirement)
Compressed air required
90 – 100 PSI
Machine dimensions
48” x 37 ¾” x 39 ¾”
Machine weight
506 lbs.
Shipping dimensions
53″ x 42″ x 44″
Shipping weight
612 lbs.
Electrical requirements
230/3/60 = 9 amps
460/3/60 = 4.8 amps
230/1/60 = 10 amps 575/3/60 = 3.9 amps
