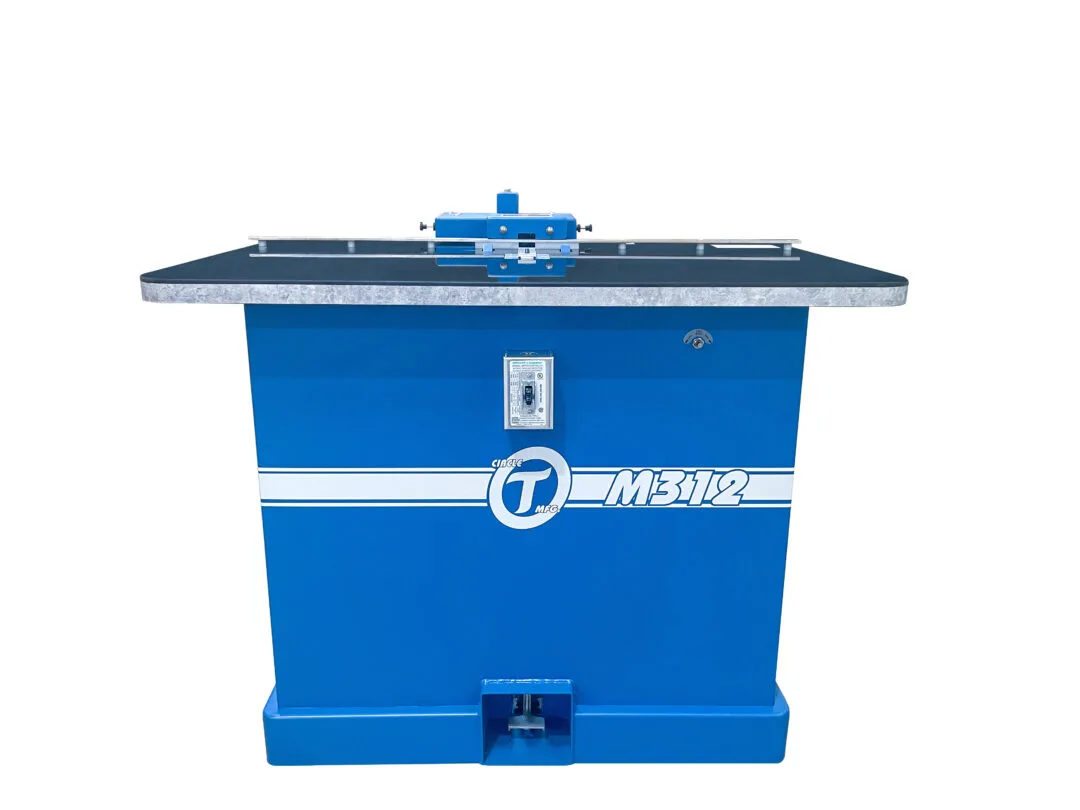

M312 | Circle T | Drawer Notchers

•The upgraded model M312 includes: EASY Foot Cycle Switch •HIGH WEAR Phenolic Top!!!•Under mount notched and locating hole drilled simultaneously!•EASY drawer locating regardless of box width using center stop!•LOW MAINTENANCE machine for a GREAT VALUE

3PH 230V 1.5HP 4.5 AMP
DRIVE PACKAGE SPECIFICATIONS:
Main Motor: 1.5 HP
Pneumatic Drill Included

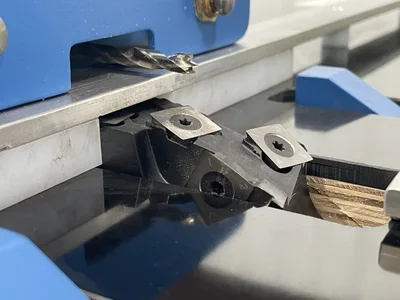

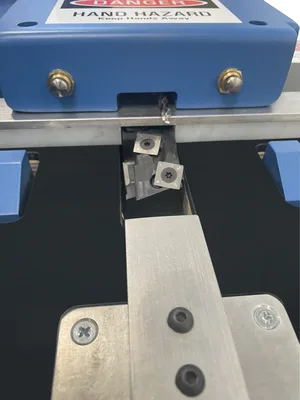

Insert Cutterhead
Available in 120V and 220V Single Phase, 230V and 460V 3phase, Hydraulic, and Pneumatic Drive Package as well
UTILITY REQUIREMENTS:
Dust Collection Requirements: 670 CFM, 4″ Outlet
Pneumatic Requirements: 90-100 PSI to power drill and control system
DIMENSION SPECIFICATIONS:
Table Size: 22″ x 48″
Table Height: 36″
Footprint: 52″ W x 42″ D X 42″ H
SHIPPING WEIGHT: 625bs
NET WEIGHT: 460lbs
