A217 | Voorwood | Mortisers & Tenoners

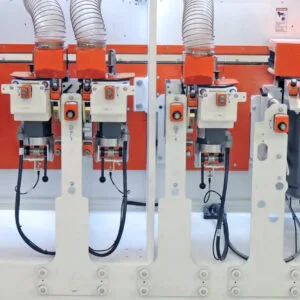

The A217 Double-End Tenoner profiles and sands both edges of hardwood parts in one continuous pass. Depending on model configuration, each side of the machine is comprised of up to three shaping units that make the same cut to prevent end grain tear-out. The first shaper rotates with the feed direction, and as the substrate passes, the station jumps in to make a short but full depth cut on the substrate’s trailing edge. The second and third units rotate against the direction of feed to finish the cut started by the first shaper. Jump shapers are equipped with a mechanical switch and PLC to time the jump, which automatically adjusts for part size and feed speed of the machine. The A217 Double-End Tenoner has four counter-rotating sanding stations, on either side of the machine, are developed to go up and down, in and out, and tilt to match shaped profiles. The first and third spindles rotate with the direction of feed and the second and fourth spindles rotate against the direction of feed. Dual sanding stations give the flexibility to do more difficult profiles and change grits to achieve finer sanding. Both shaper and sander units can be set up with optional quick-change spindles, which allow for the changeover in less than a minute.
