SC350 | Oakwood | Boring Machine

The Oakwood SC350 is a game-changing self-centering drilling machine designed for shop owners and fabricators. Created by Derrek Holland, it simplifies drilling cabinet doors and drawers, saving hours of work while ensuring perfect precision. Built for efficiency, flexibility, and ease of use, the SC350 transforms how woodworking professionals handle their projects.

Pneumatic

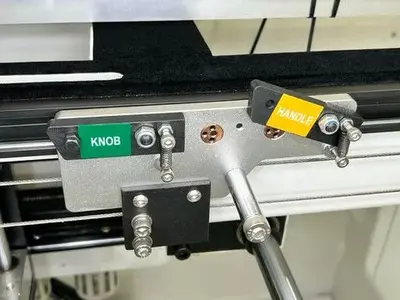

Self-Centering fence stop system
Part Size 4.5” x 8”w to 14” x 36”w / 115mm x 204mm to 355mm x 914mm
Max drilling thickness 1.5”/39mm
Minimum drawer box inside clearance 8”/210mm when drilling boxes
Center to Center drill spacing 65mm to 350mm/ 2.5” to 13.75”

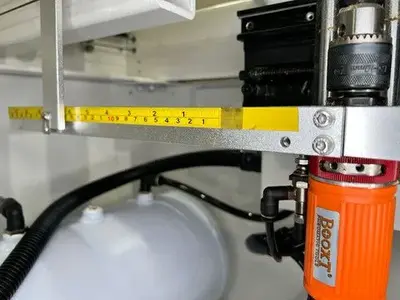

Back fence to drill center 1” /25mm minimum
Drill spacing adjustable with front mounted wheel with metric digital indicator

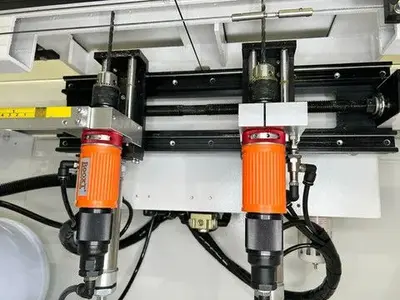

2 air operated drills, each drill operated by its own activation button
Automatic oiler for air drills
4 position drill depth stops

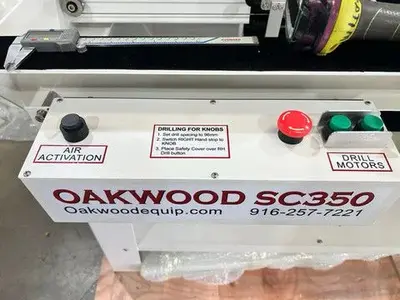

Movable button console for clearance on larger parts
2 handed operation for safety
5mm brad point bits standard
On board air tank with standard compressed air connection
Removable/replaceable hold down drill stop

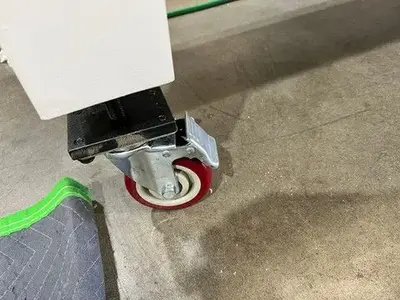

4” wheels, 2 with lock
Folding steel side tables
Adjustable height approximate 35”-39”
