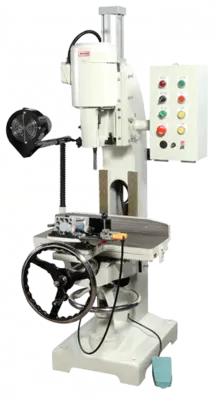

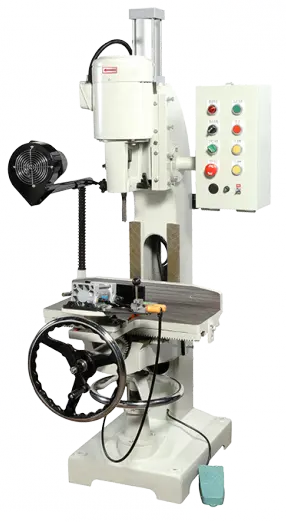

PCM-120 | Cantek | Mortisers & Tenoners

•Power stroke of head permits easy, fast and accurate successive cuts.

2HP
Chisel range|1/4″~3/4″
Motor|2HP
Spindle speed|3400 RPM
Table|16-3/4″ x 21-1/4″
Table tilts|30°
Air pressure|8KG
Clamping cylinder|2.5” (63mm)
Head traveling cylinder|3.15” (80mm)
Table cross travel|5”
Table longitudinal travel|18”
Table vertical travel|12”
Max. stock width|12”
Max. mortising depth|4”
Machine weight|572 lbs
Shipping weight|726 lbs
Shipping dimension|35” x 38” x 70”
