AF19N | Cantek | Power Feeders

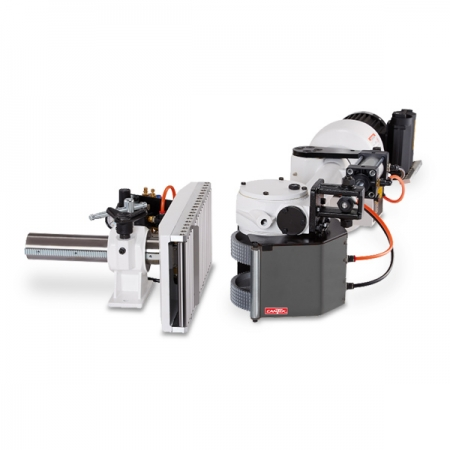

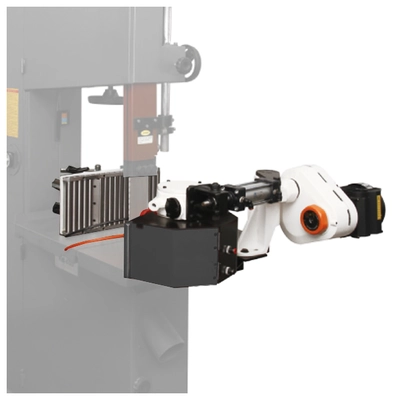

Consistent and reliable automatic feeder for your resaw or bandsaw. The Cantek AF19N Resaw Feeder is designed to allow consistent and automated feeding of material through vertical bandsaw or resaws. The AF19N is pneumatically actuated by a switch in the fence so no foot pedal is required making for a simple and convenient operation. With 10 feed speeds to choose from you can dial in the optimum feed speed for your material. Intended to be fit on bandsaws which are over 24” but could be fitted on smaller bandsaw tables, but may require an extension off the side of your bandsaw table where the feeder is mounted.Key AdvantagesConsistent feeding for bandsaws and resawsPneumatic activation of feeding unit, no foot pedal required10 feed speeds for optimum controlLine bar roller fence is easily adjusted by rack and pinion handleComes with (2) adjustable steel serrated rollersCan be mounted to almost any bandsaw/resaw (recommended for 24” and up)

INCH
METRIC
Feed Speeds (10)
4/8.5/8.5/14/17/25/28/30/50/60 FPM
1.5/2.5/2.5/4/5/7.5/8/9/15/18 M/min
Roller size
Φ6-7/8”x 1-9/16″ x 2 pcs / Cast Steel
Φ175 x 40 mm x 2 pcs
Motor
1/2 HP (0.375 KW), 3 phase; Forward
1/2 HP
Maximum roller stroke
8”
200mm
Fence dimensions
16” x 7 7/8”
400 x 200mm
Max. Roller-Blade Clearance
8 1/4”
210mm
Net Weight
79 Kg
176 Lbs
Gross Weight
97 Kg
209 Lbs
Packing Size
1220 x 480 x 470mm
48″ x 18-7/8″ x 18-1/2″
