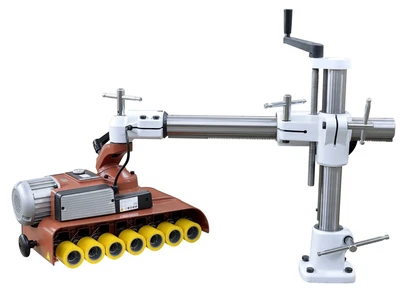

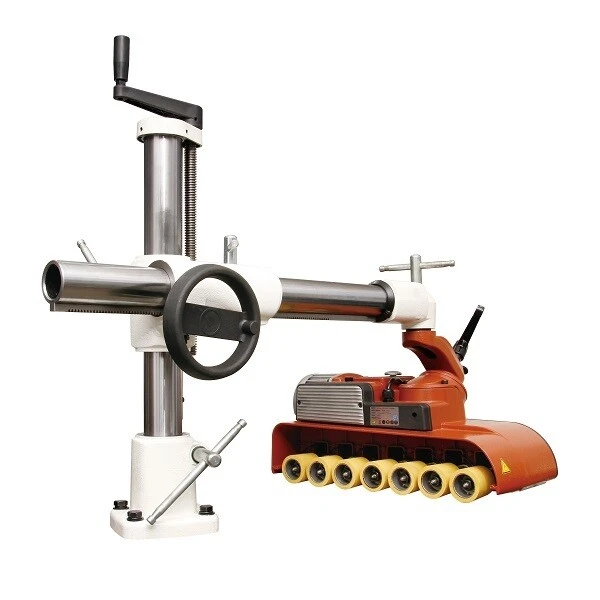

DC70 | Comatic | Power Feeders

The #1 Shaper Feeder in the market. For woodworkers looking for the capability of feeding smaller parts that tend to wobble or chatter with standard 3 and 4 wheel feeders, the DC70 is the perfect fit. The patented DC70 7 Wheel Variable Speed Power Feeder is commonly used for cabinet door parts on a shaper, lock miters, and other applications where more hold down is preferred. It is also a good option when climb-cutting by preventing the part from taking off due to its 7 hold-down points. Although it is ideal for feeding shorter parts, it is a heavy duty feeder capable of feeding larger parts as well so you don’t lose versatility. It is also great for table saws and other applications where shorter parts are being fed.

110/220V 1PH 1HP or 230V 3PH
Type|7 Wheel Variable Speed
Horse Power & Rotation|(2/3HP) 1-3 Phase, 110-220V; Forward/Reverse
Range of Speeds|7 – 86 FPM
Roller Size|∅60 x 60 mm (∅2.36″ x 2.36″)
Roller Suspension|18 mm (3/4″)
Base Bolt Pattern|108 x 90mm Center to Center
