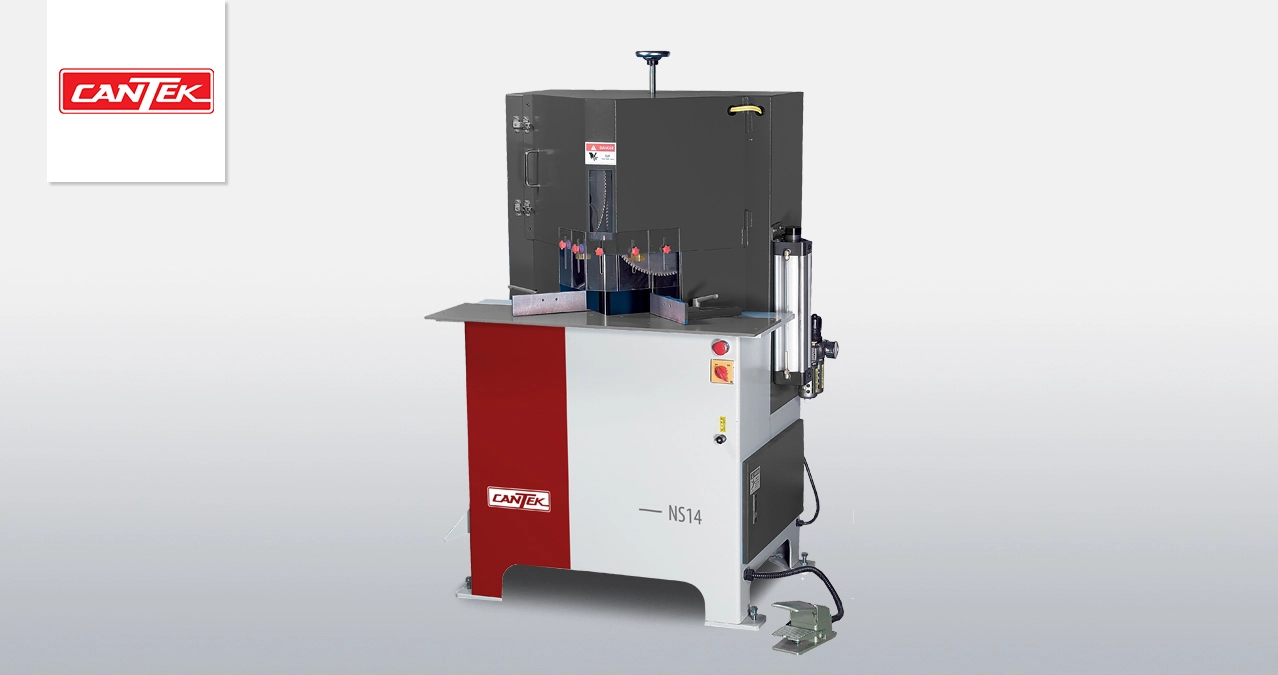

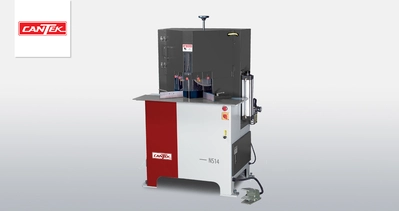

The Cantek NS14 Notching Saw is a robust miter cutting saw designed to cut perfect 90° angles for toe notching and other notching applications. The two saw blades move vertically allowing for a precise and square cut up to 7” thick, allowing for stack cutting for greater productivity. The machine is operated by a convenient foot pedal allowing the operator to locate the parts up against the dual fences resulting in greater throughput. The cutting heigh is adjustable to optimize cycle times.
230V 3PH
INCH
METRIC
Cutting angle
Notch 90°
Max cutting depth
5.3″ x 5.3″
135mm x 135mm
Max cutting height
7″
180mm
Saw blade size
14” Diameter x 1” Bore
Spindle speed
3200 RPM
Spindle motors
3HP x 2
Table height
33 ½”
850mm
Machine weight
867 lbs
394 kgs
Shipping Weight
1025 lbs
466 kgs
Machine dimensions
39 ½” x 33″ x 62 ¼”
1000 x 840 x 1580mm
Shipping dimensions
48″ x 43″ x 71″
1200 x 1090 x 1830mm
