R2061 | Ritter | Pocket Hole Machines

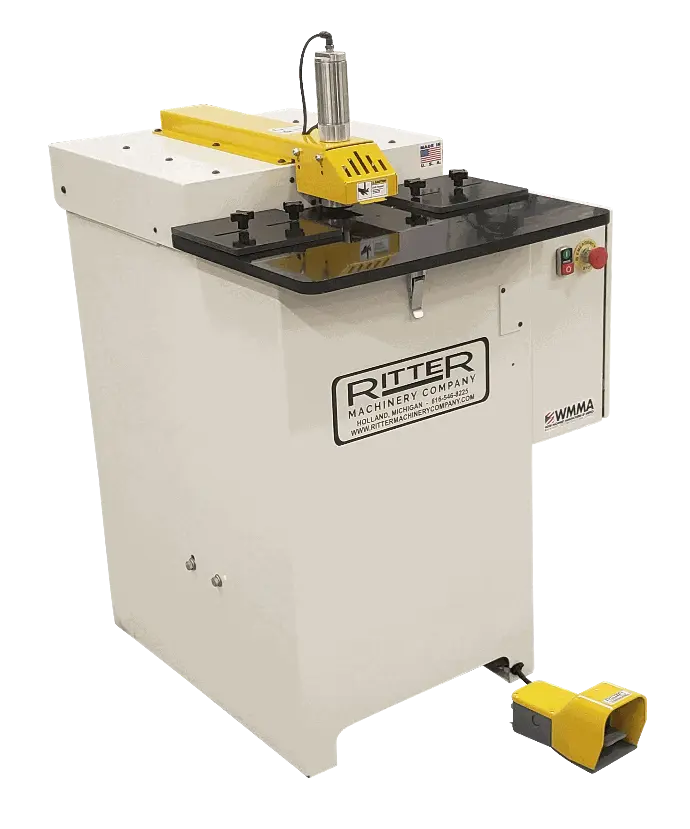

The Ritter R2061 low angle pocket cutter is used for routing a single pocket hole for cabinet face frame assembly. It is part of the R200 assembly system that includes the R200E/A and is sold separately.

Router Bit: 3/8” Solid Carbide, Rough Mill
Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
Router: 24,500 RPM, 11 A, 1.75 HP
Drill: 31,000 RPM, 4.5 A, 7/8 HP
Electrical: 110V 15A
Air: 2 CFM at 80 – 100 PSI
Work height: 36″
Footprint: 27.75″ x 20.5″
Table Area: 15.75″ x 23.75″
Dust Port: 4″
Additional options:
48″ Wide Table
R2063 – 3-Phase 230/460 Volt
Shipping Weight: 300 LBS
Shipping Dimensions: 38″ x 25″
