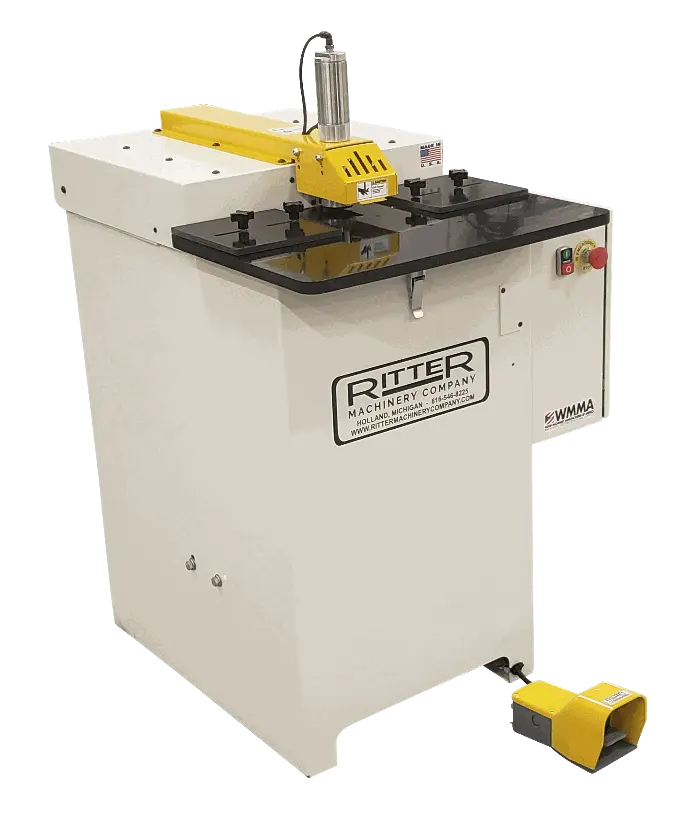

R2063 | Ritter | Pocket Hole Machines

The R2063 is one of Ritter’s pocket hole machines and is used for routing a single pocket hole for cabinet face frame assembly. It is part of the R200 assembly system that includes the R200E/A and is sold separately.

Router Bit: 3/8” Solid Carbide, Rough Mill
Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
Router: 24,000 RPM, 8 A, 2 HP
Drill: 22,000 RPM, 0.9 HP, 5.5 CFM (Intermittent)
Electrical: 230V, 3Ø, 10A
Air: 2 CFM at 80 – 100 PSI
Work height: 36″
Footprint: 27.75″ x 20.5″
Table Area: 15.75″ x 23.75″
Dust Port: 4″
Additional options:
48″ Wide Table
R2063 – 1-Phase 230 Volt
R2061 – 1-Phase 110 Volt
Shipping Weight: 300 LBS
Shipping Dimensions: 38″ x 25″
