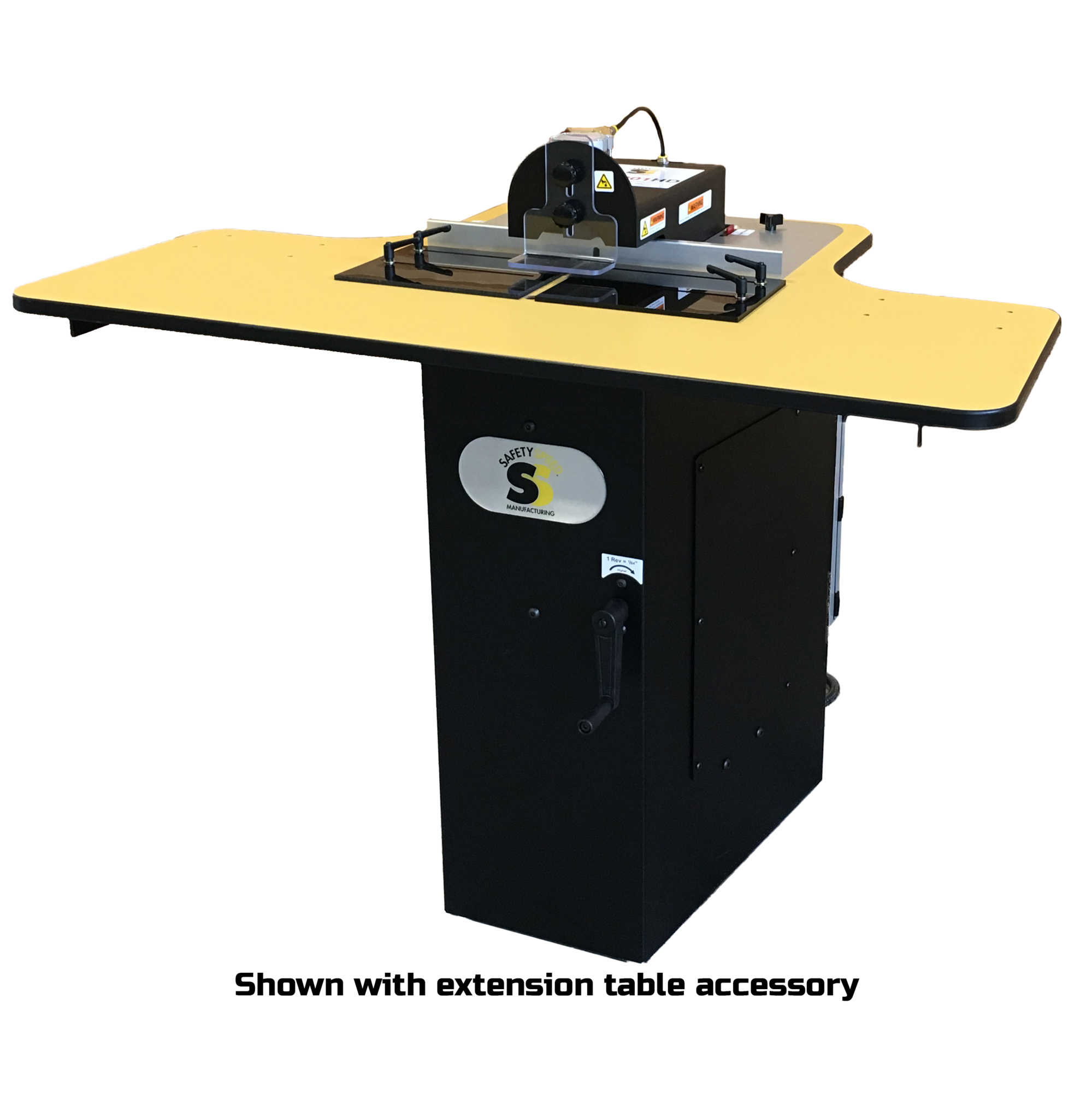

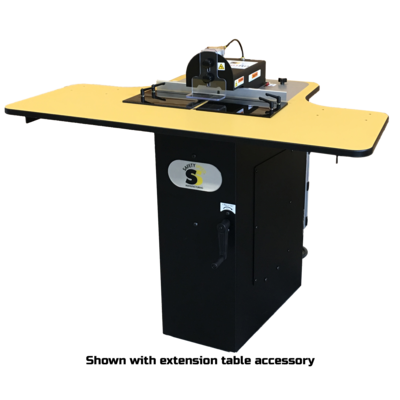

SPM301HD | Safety Speed | Pocket Hole Machines

Pocket-hole joinery for high production woodworkers made easy with our SPM301HD Screw Pocket Machine. This machine allows for simultaneously drilling a pilot hole and machining a screw pocket in under a second.

Weight|294 lbs
Dimensions|32 × 22 × 44 in
Crated Dimensions|36″ × 28″ × 49″
Vacuum Diameter Required|3″ Hose Connection
Vacuum CFM Required|220 CFM
Air Requirement|6.2 CFM at 90 PSI
* Rating based on 25% load factor, 25% duty cycle
Spindle Motor|5 amp/18,000 RPM, 3/8″ (ER20) Collet
Screw Pocket Angle|Six Degrees
Spindle Motor Amps|5 amps
Spindle Motor Collet|3/8” Collet
Spindle Motor Max RPM|18,000
Air Drill|.7HP
Air Drill Collet|1/4″ Collet
Air Drill Max RPM|25,000
