CSI 1.5D | Castle | Pocket Hole Machines

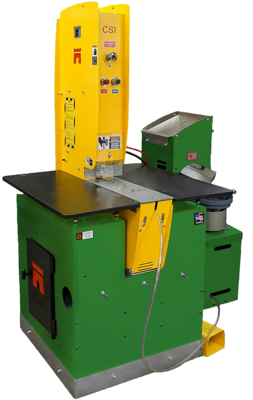

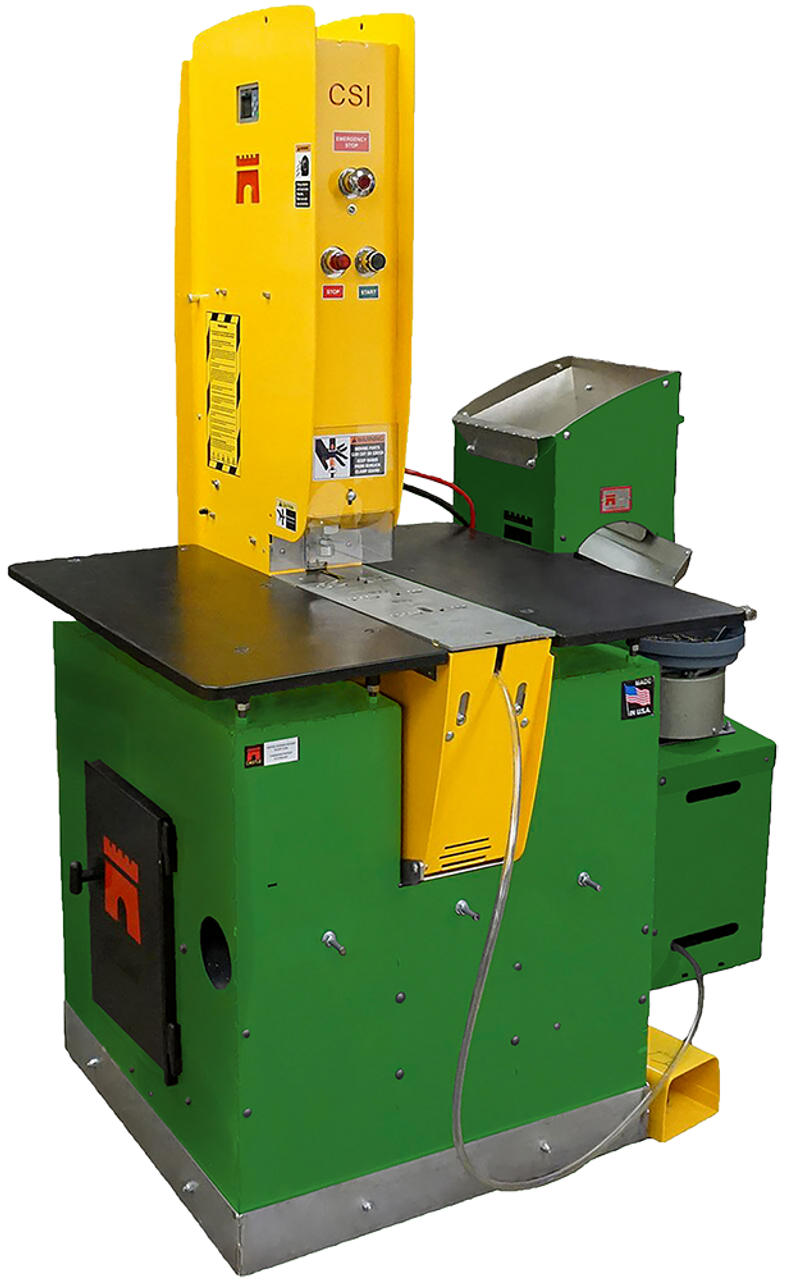

With the patented Screw-In-Pocket (SIP) technology, CSI-1.5D cuts Castle’s distinctive, 6 degree low-angle screw pocket, drills a low-angle pilot hole and inserts a flush screw – all in 1.5 seconds. Castle’s CSI-1.5D Pocket Cutter/Screw Inserter Machine cuts pockets and inserts screws in one step: pockets with screws, delivered! In customer time tests, CSI’s patented technology reduces assembly time by up to 40%. The CSI-1.5D produces stackable parts in faster production times, reduces waste, and eliminates non-value-added labor in high-capacity production joinery.Use the CSI-1.5D with composites, panel and hard or soft wood.For best results with the CSI, modified pan head screws are recommended.

230/460V 3PH 3HP 9.6/4.8AMPS
Electrical: 230V or 460V
Air: 85 psi with minimum 3/8” ID supply line
Dust collection: 4” duct port
REQ CFM: 350 CFM with 4” dust collection
Footprint: 35” x 33” (35” x 63” including Screw Feeder)
Working Height: 36”
Machine Height: 72”
Worktop Area: 33” x 35”
Shipping Weight: 1085 LBS.
Manufactured in the USA
