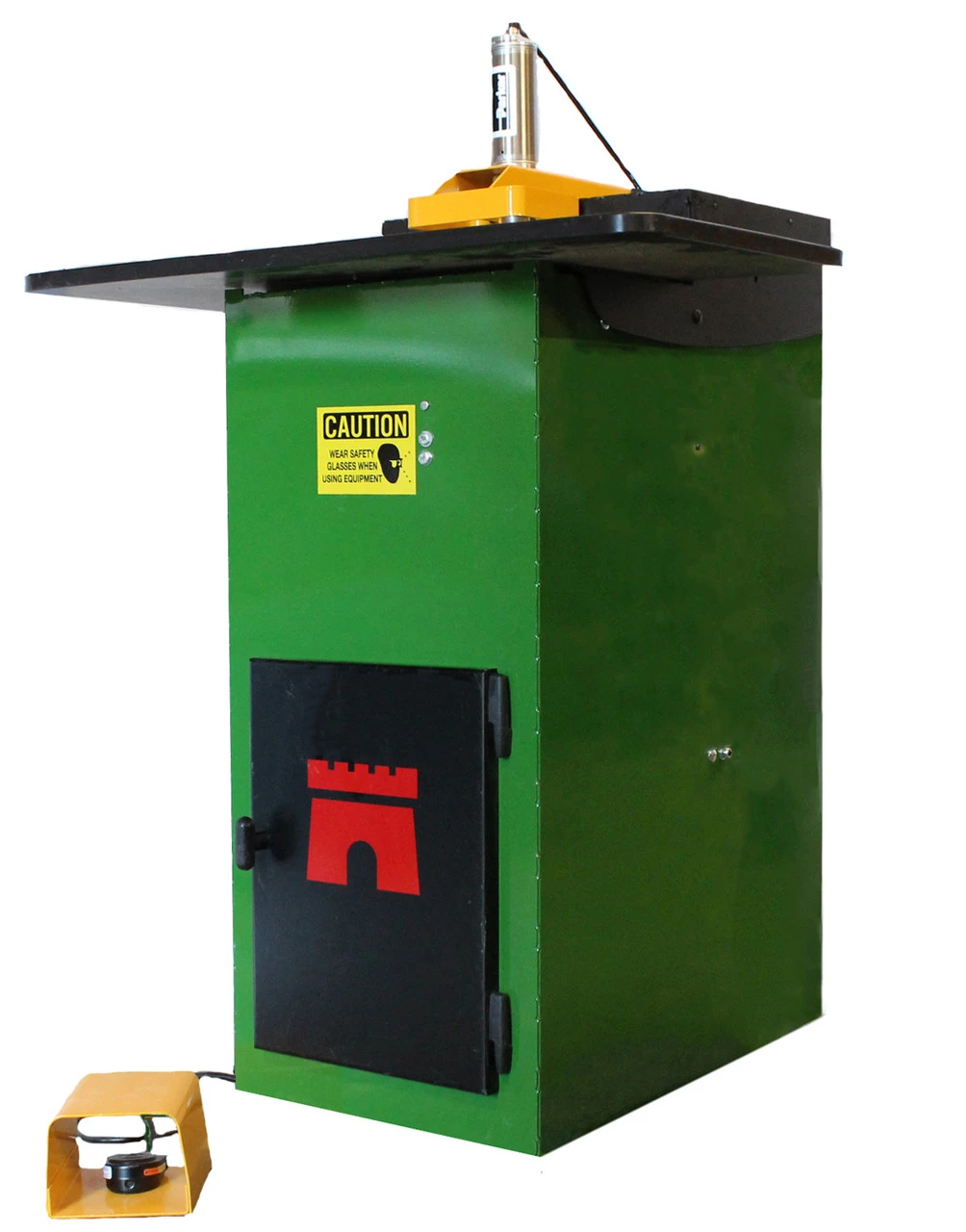

TSM-22 | Castle | Pocket Hole Machines

The TSM-22 is our latest model in the TSM-20 series, the most widely used – and best-selling pocket cutting machine series ever made. Known for its pioneering, 6 degree, low-angle pocket, unsurpassed durability, ease of operation, and low maintenance, the TSM-22 is a clear favorite among professionals in cabinet making, furniture making, and woodworking. The TSM-22 clamps the stock, routs a pocket, and drills a pilot hole – all with a tap of the foot pedal – in a cycle time of just 1.5 to 2 seconds. With the TSM-22, creating strong, stable joints is fast and easy. Requiring minimal training and maintenance, the TSM-22 uses standard 110V electric, and only requires minimal set-up upon delivery.

110V 1PH 3HP 15AMPS
Router: Bosch 2.25hp #1617EVS
Drill: Bosch Colt 1.0hp #PR20EVS
Router bit: Premium 3/8” Solid Carbide, Rough Mill
Drill bit: Premium 9/64” Brad and Spur TiN-Coated Bit
Power req: 110V, 15 amps
Air req: 85 psi
Bosch 1617 Router 2.25hp for pocket cutting
Bosch Colt Router 1hp for drilling pilot hole
Basic footprint: 31.5″ depth x 30″ width x 48″ high
Working height: 36.5″
4” integrated dust port
Manufactured in USA
