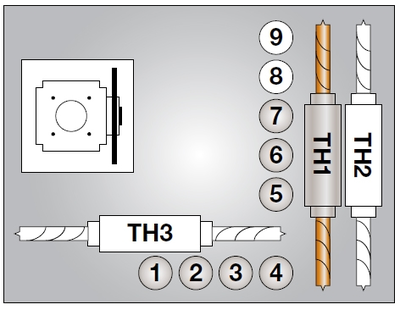

Very simple and fast programming Extremely intuitive user interfaceImportable and text format exportable working programsUp to 1,000 programs can be storedMachines panels from aboveSuitable for drilling on face and sides of panels, including holes for dowels, hinges, KD Fittings and shelf holes(9) vertical spindles (6 in X axis and 4 in Y axis)Saw Blade Unit in X axis(2) 1 + 1 Horizontal Spindles in X axis(1) 1 + 1 Horizontal Spindle in Y axisSpindles rotations speed: 3,400 RPMAxis speed 25 meters/min | 82 feet/minPanel End Edge Reader for perfect panel assemblyMax. panel dims: Y – 800 mm (31.5″), X – Unlimited, Z – 50 mm (2″)Min. panel dims: Y – 100 mm (3.93″), X – 250 mm (9.84″), Z – 10 mmBoring Capacity 0 to 800 mm (31.5″) with any spindleAbility to execute all drilling operations in a single working cycleCNC programming with 12″ touchscreenAutomatic panel cleaning with brushesTeleservice software
230V 3PH
•Voltage: 230V 3-Phase
•Total Power: 2.5 kW
•Air Pressure: 6 Bar
•Dust Collection: 1200 CFM Minimum
•Dimensions: 68″ W x 72″ D x 68″ T
•Weight: 2,205 lbs.
