CD-305 | Cantek | Finishing Equipment

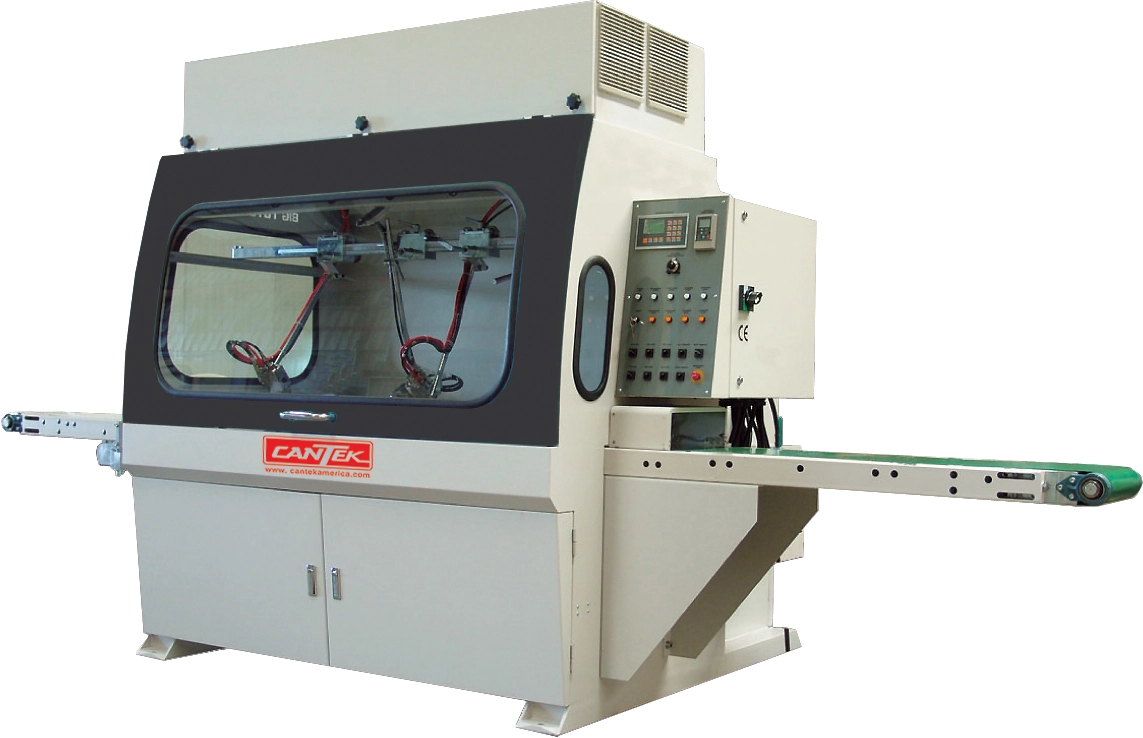

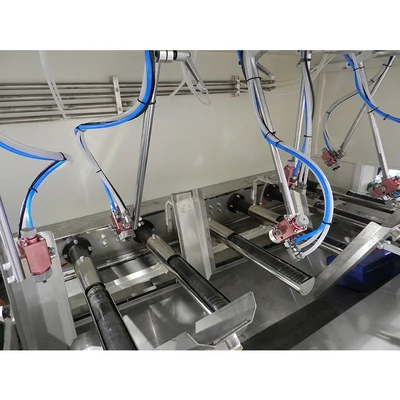

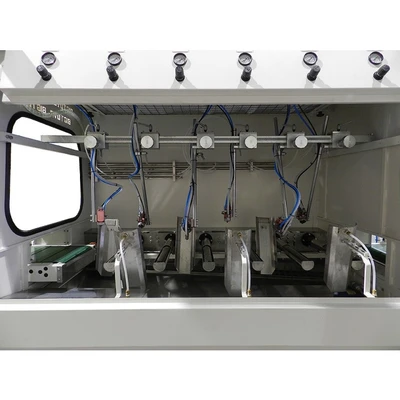

The Cantek CD305 auto linear spraying machine allows the automatic in line spraying of lacquers & stains on mouldings, picture frames, door, window & furniture components up to 305mm wide.  The wide spraying booth contains 6 spray guns that are automatically timed by photocells to minimize material usage and waste. A PLC control system, equipped with LCD display, checks all the machine functions and setup.

230/460V 3PH
Max. Width 12″ (305mm)
Max. Thickness 3.54″ (90mm)
Max. Length Infinite
Min. Length 21.65″ (550mm)
Feed Speed 33~100+ FPM (10M~30M/min)
Feed Motor 1 HP
Exhaust Fan Motor 5 HP
Electrics 230/460 or 575/3/60 to CSA/UL Standards (specify)
