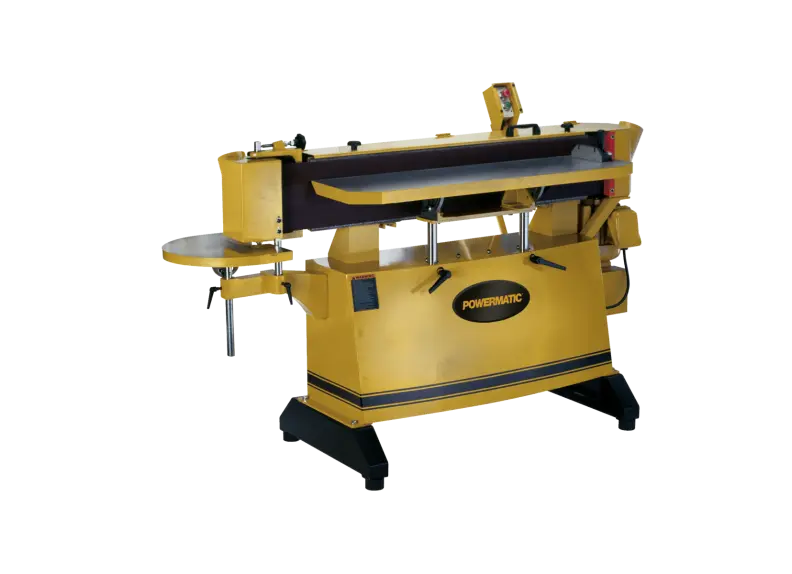

OES9138 | Powermatic | Sanders-Edge, Brush, Profile, Spindle

The large 11-3/4″ x 48″ table on the OES9138 oscillating edge sander travels a full 8″ in vertical height to accommodate most woodworking pieces. It will also tilt negative 5° and out to positive 45°. The cast iron platen is a generous 48″ x 9-1/2″ and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.

3HP 1or3PH 230/460V
Belt Speed (SFPM)|3,542
Dust Collection Minimum CFM Required (CFM)|1,100
Dust Port Outside Diameter (In.)|4
Gross Weight (Lbs)|870
Motor Power (HP)|3
Net Weight (Lbs.)|800
Overall Dimensions (L x W x H) (In.)|83 x 32 x 50
Prop 65|Cancer and Reproductive Harm
Style (Type)|Oscillating Edge
