700 SERIES | Larick | Sanders-Edge, Brush, Profile, Spindle

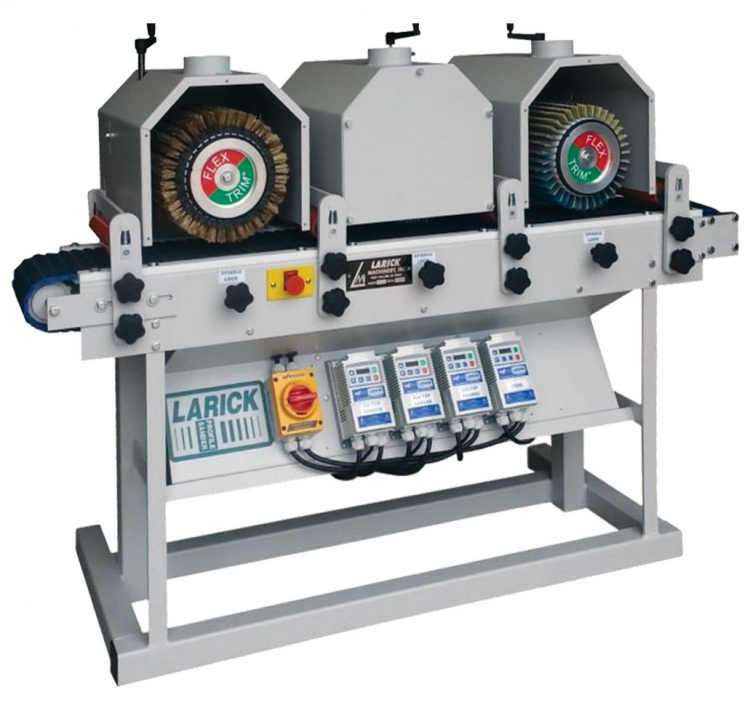

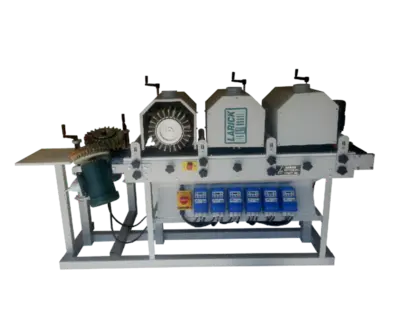

The 700 series sander has a variable speed conveyor under the top sanders.  It can be configured with 2, 3, or 4 top sanding spindles, and with or without universal side sanding stations.  The conveyor can be either 9 or 15 inches wide.  Brush type sanding wheels, wire brushes, or inflatable drums can be used.Larick’s compact design minimizes floor space requirements.

1HP 208-230/460V 1PH OR 3PH
FEED RATE: 4 to 40 FPM
SPINDLES: 1 inch dia, 10 inch long
SPINDLE RPM: 150 to 600 RPM (TOP) 150 to 900 RPM (SIDES)
VOLTAGE: 208-240 1 or 3 PHASE 460 3 PHASE 575 3 PHASE
LENGTH: 47 inch (2 Top Heads)
add 17” per additional top head
add 26” for side heads
WIDTH: 33 inches with 9 inch conveyor 39 inches with 15 inch conveyor
Motors: 1 HP 6 pole 3ph, Higher HP Optional
Variable Speed: AC Inverter 150-600 rpm
Arbor: 1.25″ Dia. by 11″ Long
Vertical Travel: 6″
Conveyor Width: 9 inch (15 inch optional)
Conveyor Height: 36 inches
Air Pressure Required: None
Dust Collection: 4″ on each top head
