260 SERIES | Larick | Sanders-Edge, Brush, Profile, Spindle
Overview
Description

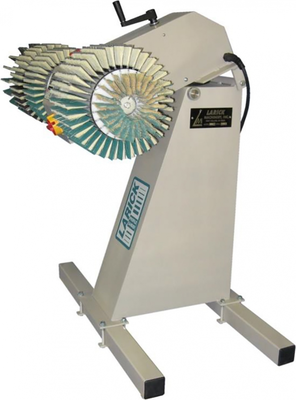

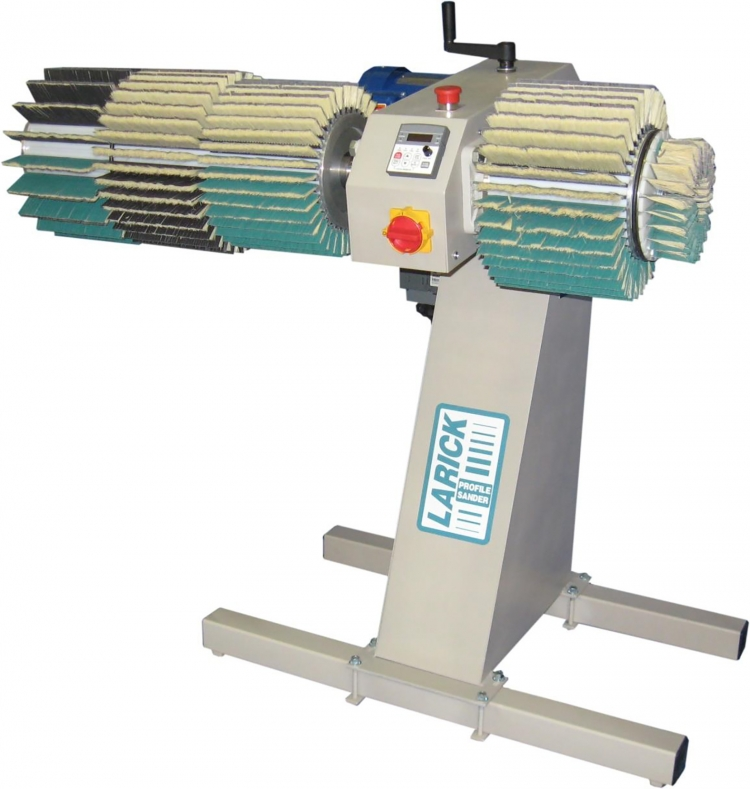

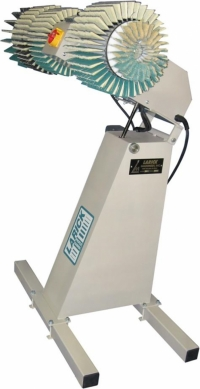

The 260 Series Profile Sander is a horizontal spindle machine designed for use with flexible brush type sanding wheels. The base machine has 40mm diameter spindles extending 175mm on both sides. 50mm diameter extensions can be added to either or both sides. In addition, the spindle height can be easily adjusted. Variable spindle speed is inverter controlled. The spindle’s rotation can be changed to allow sanding to be performed on top or bottom of the brushes. The bases can be moved side to side to provide clearance for the operator.
Specifications
1.5HP
Motor: 1.5 HP 3ph
Voltage
•Model 261: 120 or 208-240V 1ph 50-60hz
•Model 262: 208-240V 1 or 3ph 50-60hz
•Model 264: 400-480V 3ph 50-60hz
Variable Speed: AC Inverter, 100-800rpm
Spindle: 40mm Dia. By175mm
Long Spindle Extensions: 50mm OD, 600mm
Maximum Length Spindle Height: 34 to 49 inches
Footprint: 60 by 27.5 inches
