LBS300 | Cantek | Sanders-Edge, Brush, Profile, Spindle

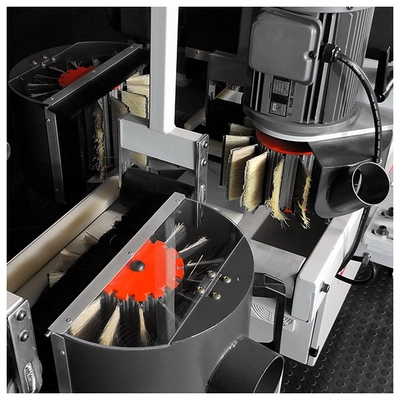

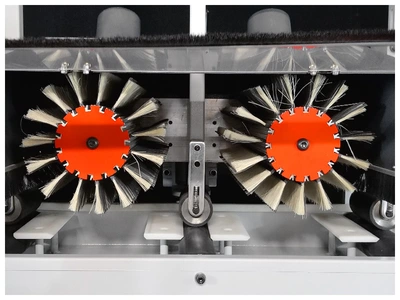

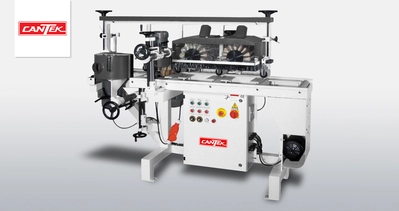

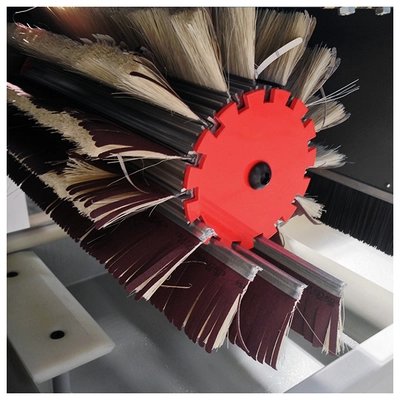

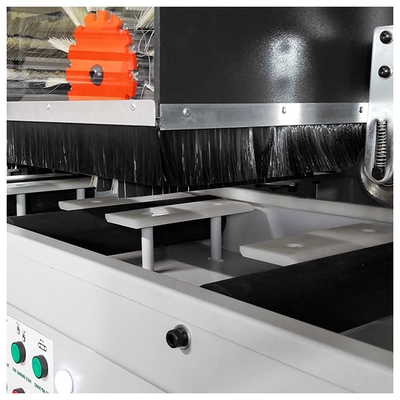

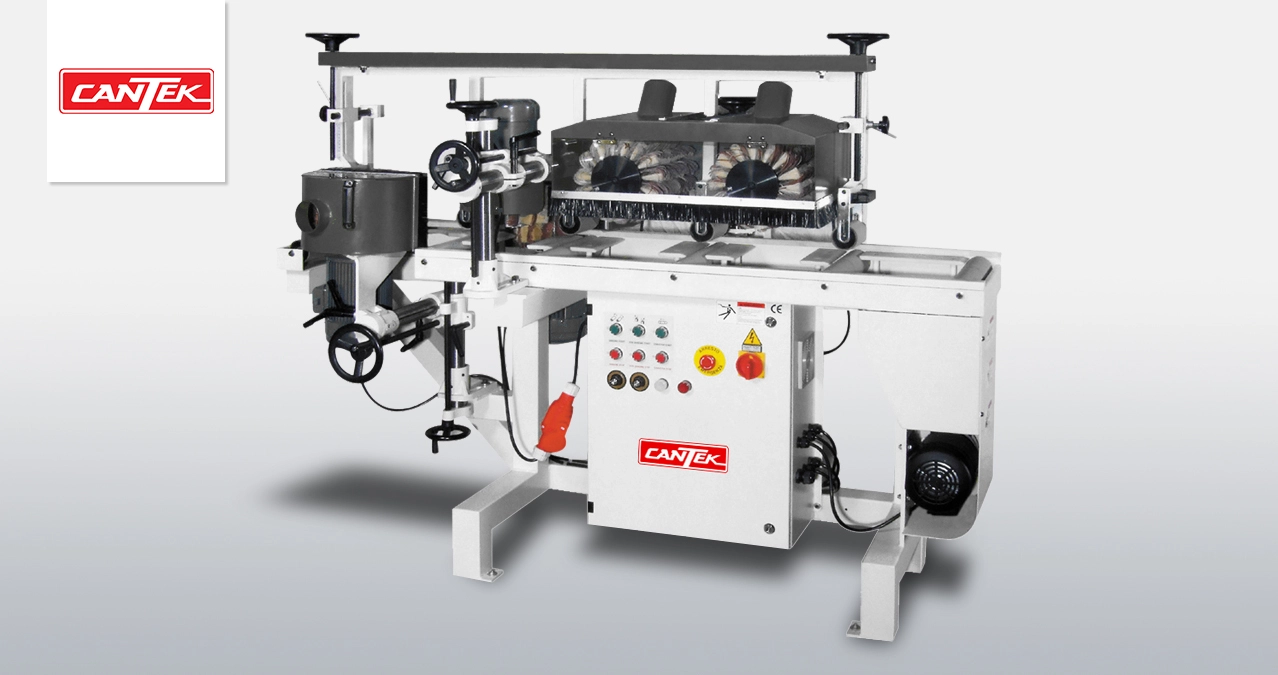

Eliminate hand sanding with our economical sanding and de-nibbing solution for linear profile. The Cantek LBS300-5S 3-sided lineal brush sander is designed to help with your everyday linear profile sanding needs. It can be used for white wood sanding and sealer sanding of linear parts such as mouldings, flooring, furniture components, window parts etc. The machine works well as a standalone unit, or as part of the finishing line.

230/460V 3PH
Max. working width|12″
Max. working height|4″
Min. work-pieces length|33″
Min. work-pieces thickness|3/8″
Feed speed (Variable)|20~56 FPM
Speed of sanding wheel|200 ~ 1200 RPM
Top brush head motor|2 x 3/4 HP
Left brush head motor|1 x ½ HP
Right brush head motor|1×1/2 HP
Left brush head motor|1×1/2 HP
Conveyor motor|1/4 HP
Moving brush head motor|1/3 HP
Dust ports|4 x 90 mm and 1 x 60 mm
Machine dimension (LxWxH)|73” x 49” x 61”
Packing dimension (LxWxH)|81” x 40” x 64”
Net weight|748 LBS
Gross weight|1034 LBS
Power requirements|230/3/60 = 14 Amps|460/3/60 = 7 Amps
