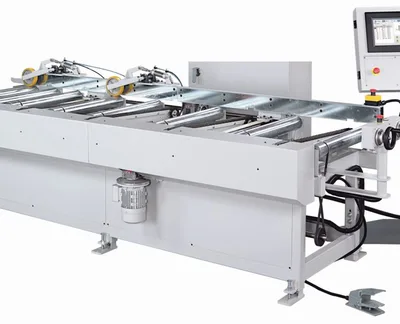

MRS610M | Cantek | Saws-Rip, Gang

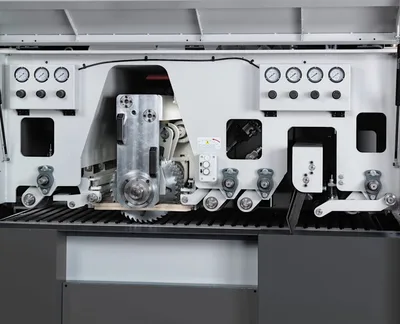

FeaturesThe Main Frame is Cast IronHD Precision Straight Line Feeding caterpillar Chain typeFully Programmable Position sets or Infinitely variable foot pedal position setUser friendly Touch Screen controlQuick Saw Blade positioning by Servo MotorBlade positioning by Electronic Joystick Control (Efficient & Quick) or the touch screen controlsEquipped to shift 4 saws independently or 2 saw per shifter (optional as a cluster) on the with a single or bank of saws on the inside or the saw can be set up to gang rip if desiredShort Stock Cutting device – includedPneumatic Pressure to the Holdown Feed RollersSpecially Designed and Patent Pending Precision Glide Lock – Nickel chrome steel Saw Arbor & 4 Shifting Saw Bushings are equipped with specially designed rollers3 rows of anti-kickback fingers (2 Top & 1 Bottom)Variable feeding speeds of 16′ – 200′ min. (5-60m/min)Laser Light system including 6-15mw Lasers. This laser light package provides the optimum in both defecting and maximum yield (Included)Powered Top & Bottom Outfeed RollersDigitally controlled Centralized Lubrication System14″ dia. Precision Carbide Saw BladesAutomatic Star-Delta Starter (low amperage soft start)All electrical components are CSA, UL, CE and NEMA approvedElectrics to 230/460 or 575 volts 3 phase 60 cycles to UL/CSA Standards or 380 or 415/3/50

Max. Cutting Width 24″(610mm)
Max. Cutting Thickness of moveable saw
(w/o pressure plate) 3.3″(3.9″) 85(100)mm
Max. Cutting Thickness of multiple rip saw
(w/o pressure plate) 3.7″(4.3″) 95(110)mm
Number of moveable saws 3 – 6
Max. material width of pass-through 35.4″(900mm)
Max. sawblade diameter 14″(355mm)
Saw arbor diameter 2.8″(70mm)
Saw arbor motor 50 HP
(optional up to 125HP)
Variable feed speed 25 – 200 FPM (8-60M/min)
