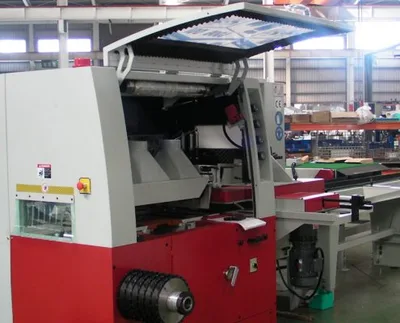

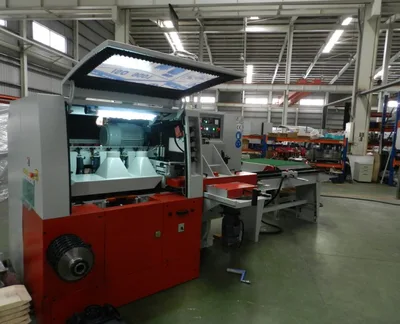

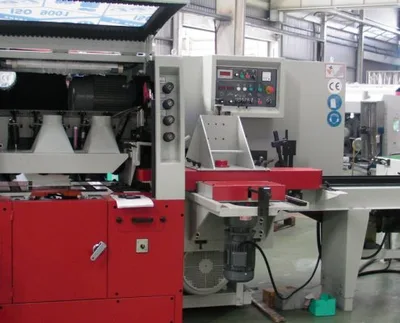

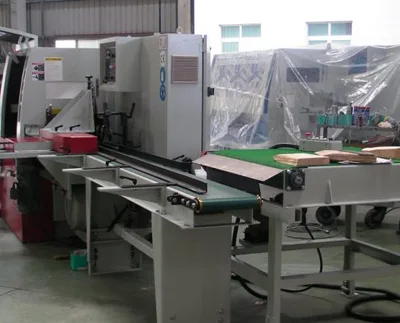

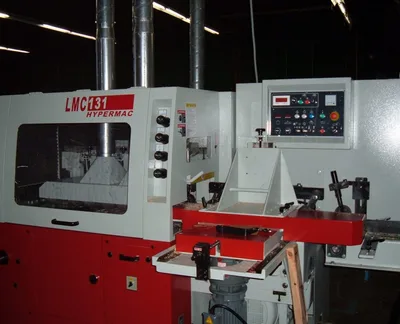

MAIN FRAME, MACHINE BED & ENCLOSURE1 Piece – Extra Heavy 1 Piece Main Frame. Specially heat treated for maximum stability and minimum vibration43” (1.1 meter) long Adjustable Infeed Table (adjustable .4 inch) – measured from Btm. Head Infeed Bed Plate – head endAll Bedplates, Tables and Fences are Hard ChromedLift up sound and safety Enclosure including safety interlocks and good lightingDRIVE INCLUDESMaintenance free Full Cardan Shaft Drive to feedworks for balanced drive performance, with individual worm reduction gear box to each feed roller stationPowered rise and fall to extra heavy duty feed support beam by 3/4 hp.Upper support Beam is supported at both the Infeed and Outfeed ends on 2 large columns for the best, most rigid upper beam support.All top feed rolls and pressure elements rise & fall with the top beam. Safety switches are included at extreme points6 Top Driven Full Width Feed RollsAll Top Rolls are air tensioned with 3 Stage Pressure Setting of Feed Rolls. This compensates for large variances in work piece thickness.Top Steel feed rolls are hardened and chromed to resist wear and to prevent chips & shavings from sticking to them4 Driven Bottom Rolls – all full width. All are Cardan Shaft driveInfinitely variable feed speeds with inverter and feed speed LED display 20 – 165 FPM(6 – 36 m/min) Feed motor power 10 hpFeed roll diameter 5.5” / 140mmSPINDLE ASSEMBLYSpindle is Standard 3200 RPM and belt driven (other RPM’s – optional – no charge)50mm diameter spindle with 70mm OD with Dble Keys – Gang SleeveSpindles are manufactured from SCM-439 tool steel (Imported from Mitsubishi-Japan) with special heat treating to HR 55C Hardness fitted with 2 pairs of NSK-RHP ABEC 7 Duplex Super high precision high speed Bearings to provide the best in cutting stability with permanent accuracy. Spindle Tolerance is guaranteed to +/-0.002mm / 0.00007” accuracy. They are permanent grease lubricated and are labyrinth sealed to prevent against dust and water.Hydro-Loc Quick change Outboard Bearing Assembly on end of the shaftElectric Height Adjustment of spindle from front – Easy to operate stationStd. HP Swing Hood SizeBottom Spindle 75 HP 10″ 7.9″ (200mm)Note: Larger or smaller HPs availableCHIPBREAKERS, FENCES & HOLDOWNS/HOLDOVERS, ETC.Tables, Bedplates, Pressure Plate and Fence is Hard ChromedMISCELLANEOUS features and inclusionsCentralized lubrication system to all main slidesDust HoodToolkit, Instruction and maintenance manual, electrical diagram and parts listELECTRICALTECO-Westinghouse or Siemens – Electric Motors – excellent quality & heavy dutyLimit switch at infeed to prevent feeding oversized material and double upsI.E.C. – Telemecanique-Square D Electrics meet or exceed UL/CSA StandardsMachines are equipped with Wye-Delta Soft Starters, main disconnect, multiple E Stops and 230/460 or 575/3/60 electrics.
Thickness Material .4” to 2.25” Note – to .25” thick and/or to thicker is optional
Width Material 12.2” – between outside blades
Minimum Length Material: 7.8” (200mm)
