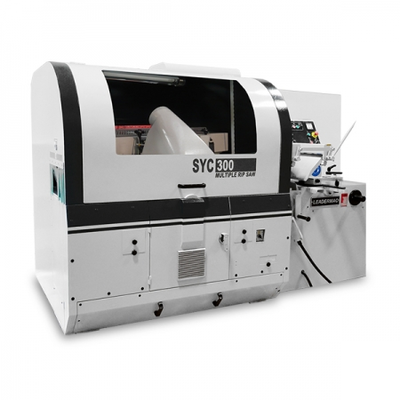

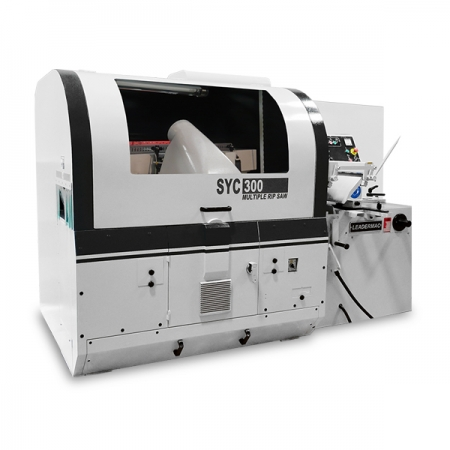

SYC | Leadermac | Saws-Rip, Gang

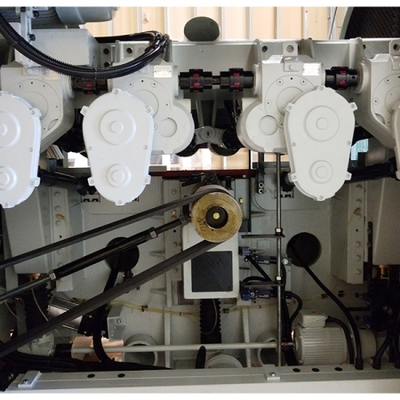

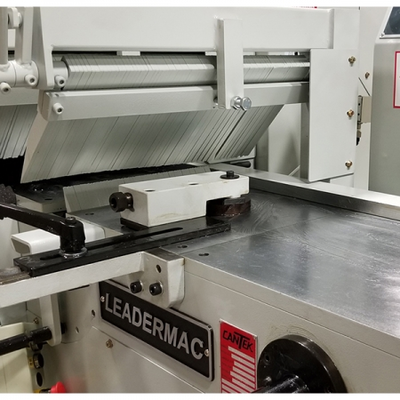

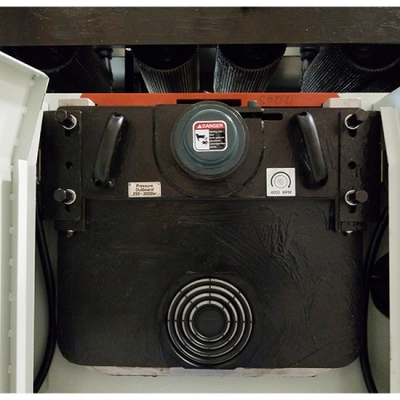

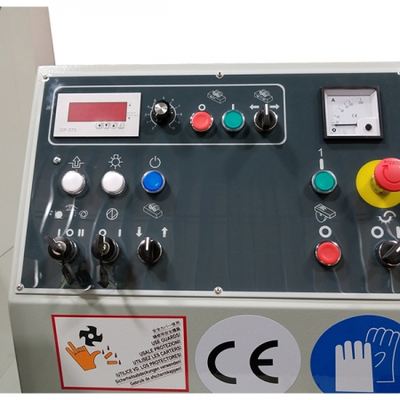

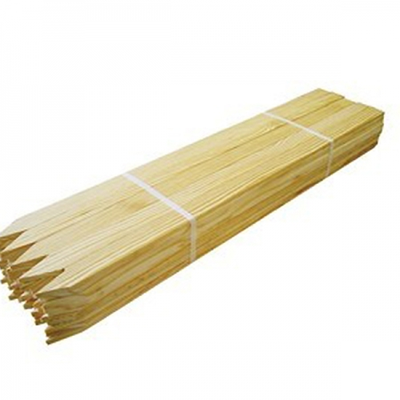

Powerful, precise, and efficient roll feed ripsaws.The Leadermac SYC Series Roll Feed Ripsaws has been designed to ensure uncompromised results specifically aimed to the company looking to run strip materials like lath, dunnage, stakes, and more. The roll feed design will rip for maximum material yield which helps increase output and margins.Key AdvantagesHeavy cast iron base provides best rigidity and reduces vibration for rip cutting results(6) top driven feed roll assemblies for optimum material control(4) bottom driven feed roll assemblies facilitate in feeding difficult to feed materialBlades are mounted to a removable saw sleeve which allows the operator to pre-build different ripping setups and facilitates in fast changeoversA number of features are integrated in to the machine to ensure safe operation

Range of workpiece length 10″ – 60”, 98”, or 120” 250 mm – 1500 mm, 2500 mm, or 3050 mm
Range of workpiece width 6″ (8” optional) 150 mm (200 mm optional)
Range of workpiece thickness 0.8″ – 2.7″ 20-70 mm

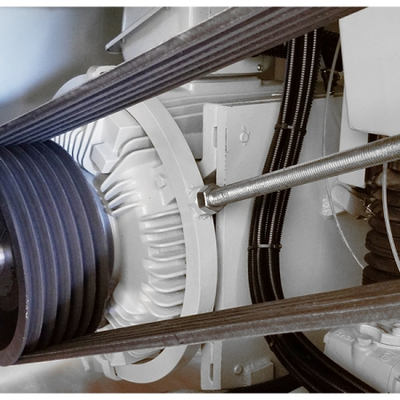

Spindle motor 3HP x 2 3HP x 2
Spindle speed 3000 rpm / min 3000 rpm / min
Spindle diameter Ø 1″ Ø 25.4mm
Saw blade dia. Ø 14″ Ø 355.6 mm
Table height 35″ 900 mm
Hydraulic pump motor 3HP x 2 3HP x 2
Waste material conveyor motor 3000 rpm / min 3000 rpm / min
Maximum waste cut off length 3” 76.2 mm
All specifications and design characteristics shown in this brochure are subject to change without notice
