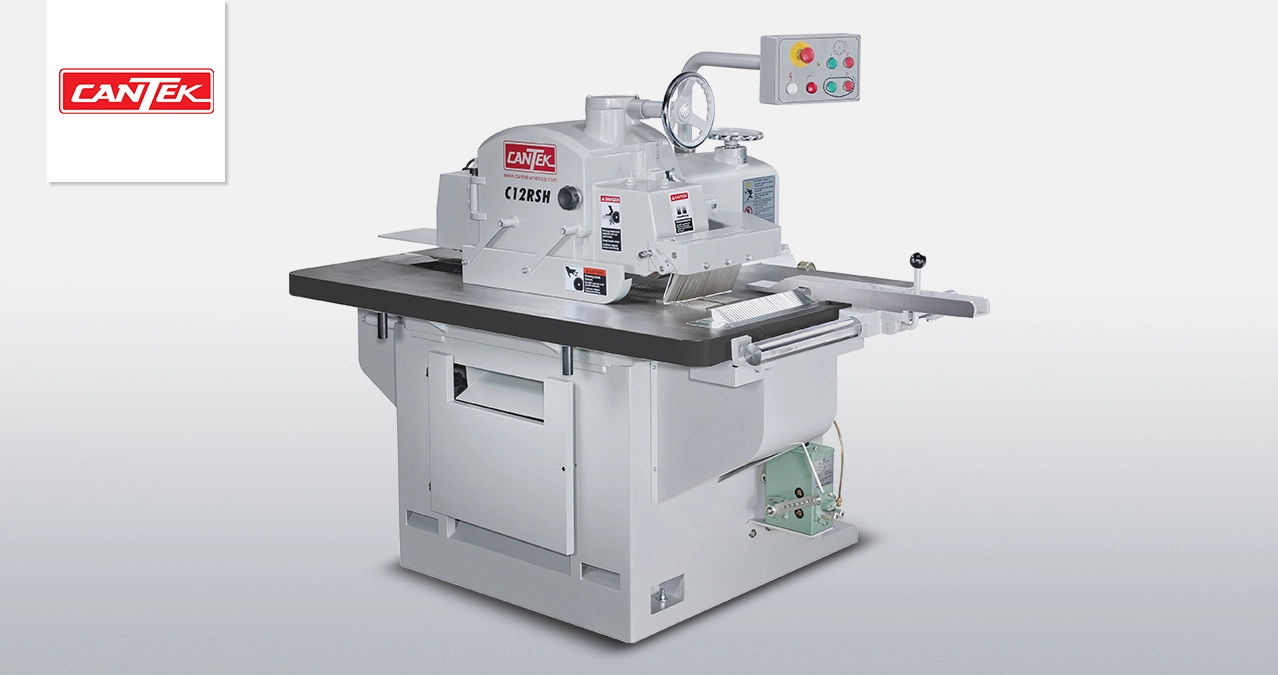

C12RSH | Cantek | Saws-Rip, Gang

The Cantek C12RSH Straight Line Ripsaw is a single-blade ripsaw geared towards the shop looking to increase efficiency in their ripping operations but can not justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C12RSH can produce a glue joint finish ready for panel glue-up right out of the saw.

230/460V 3PH 16HP 46/23AMPS
Saw arbor diameter 1″
Saw blade diameter 10 – 12″
Saw arbor speed 4500 rpm
Feed Speeds – variable 50 to 120 FPM
Maximum workpiece thickness 3.34″ (12″ blade)
Minimum workpiece length 8″
Glue line guarantee 10’ (+/- 0.0098” or 0.25mm)
Distance between saw and column 18″
Arbor motor 15 HP
Feed motor 1 HP
Electrical 46 amps (230V); 23 amps (460V)
Table size 39″ x 57″
Table height 31-7/8″
Dust port size 4″
Net weight 2,090 lbs
Machine dimensions 68” x 46” x 62”
Shipping weight 2,530 Lbs
Shipping dimensions 65″ x 55″ x 60″
