R16 | Cantek | Saws-Rip, Gang

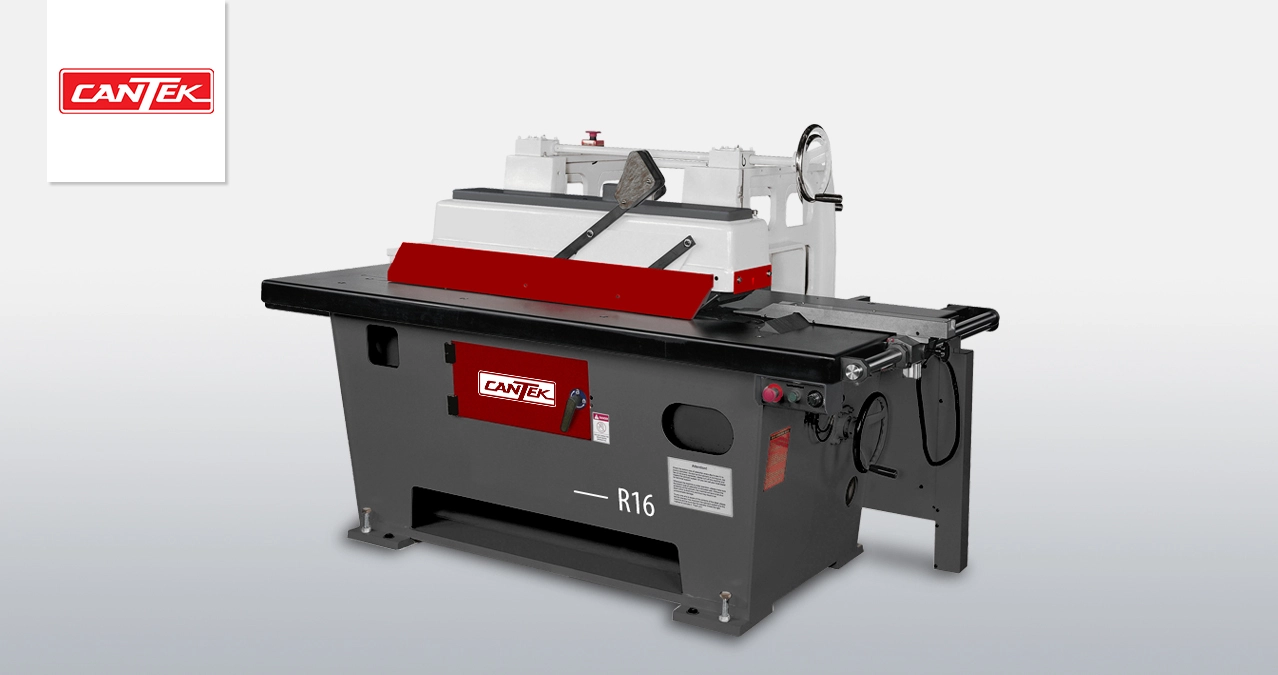

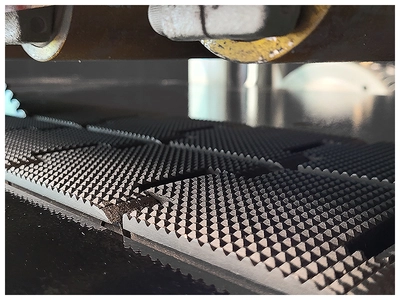

The Cantek R16 bottom cutting straight line ripsaw is designed with performance and added safety in mind.  Cutting from below forces the workpiece down on to the feed chain for superior hold down.  In addition, the blade can project up above the workpiece to allow the gullet to clear the chips which leads to less heat buildup resulting in longer blade life and improved cut quality.  The R16 is capable of producing a glue joint cut up to 8 feet.     The powerful 15HP direct drive ensures optimum feed rates no matter what material or thickness you are cutting.

230/460V 3PH 16.5HP 48/24AMPS
Glue joint cut length|8” to 96”
Maximum sawblade diameter|14”
Maximum cutting thickness|3”
Sawblade bore|2”
Main saw motor|15 HP
Feed motor|1.5 HP

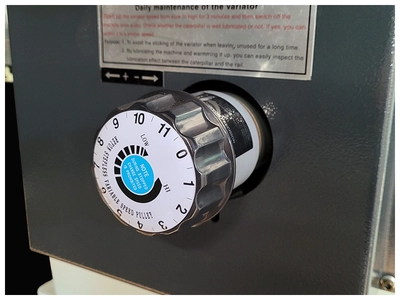

Feed speed (variable)|36~105 FPM
Saw arbor brake system|Standard

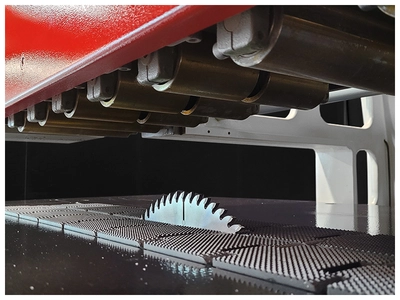

Number of pressure rolls|8 rolls
Distance from saw blade to column|18.1”
Table dimensions|69” x 35.4”
Table height from floor|33.46”
Table width to left of blade|17.9”
Table width to right of blade|17.5″
Dust ports|Top: 4”; Bottom: 6”
CFM Required|1400 CFM
Machine dimensions (LxWxH)|75”x55”x51”
Machine weight|2200 lbs
Shipping dimensions (LxWxH)|81”x65”x63”
Shipping weight|2425 lbs
Electrics|460/3/60 @ 24 Amps|230V @48 Amps
