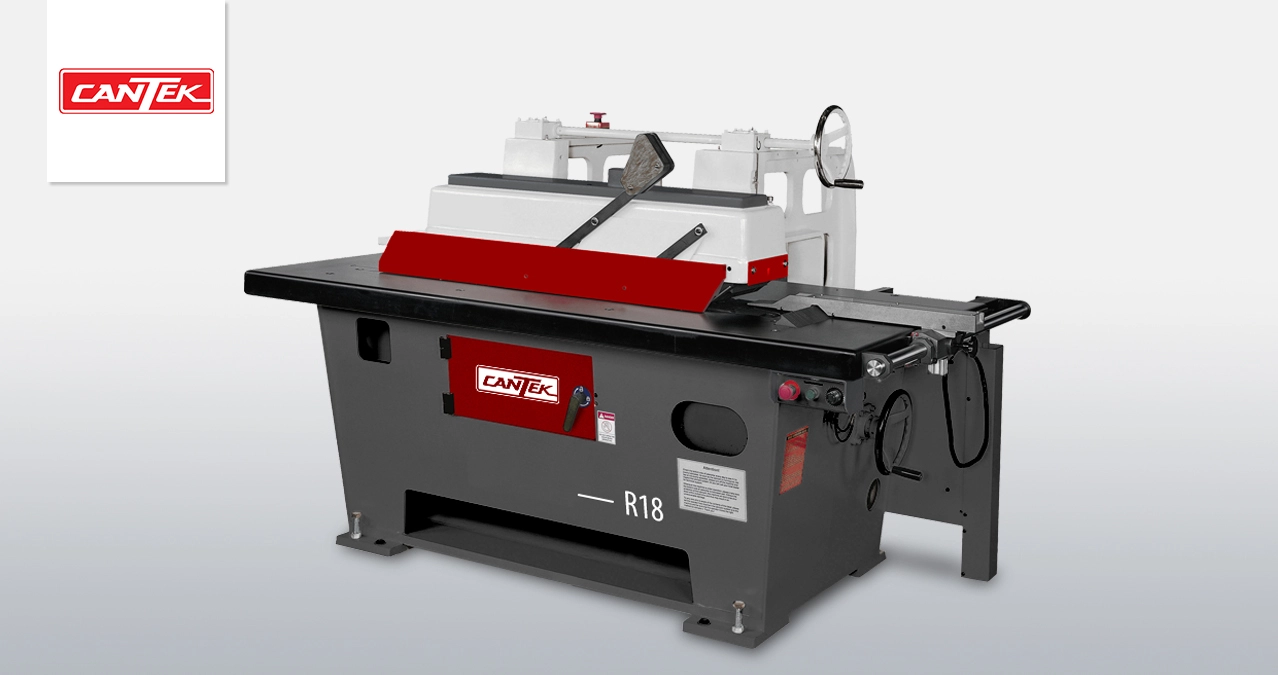

R18 | Cantek | Saws-Rip, Gang

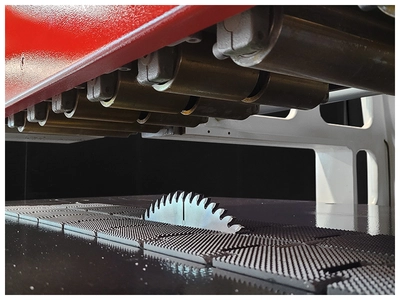

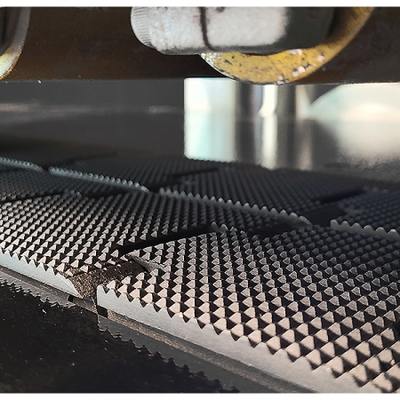

The Cantek R18 bottom cutting straight line ripsaw is designed with performance and added safety in mind.  Cutting from below forces the workpiece down on to the feed chain for superior hold down.  In addition, the blade can project up above the workpiece to allow the gullet to clear the chips which leads to less heat buildup resulting in longer blade life and improved cut quality.  The R18 is capable of producing a glue joint cut up to 12 feet.     The powerful 20HP direct drive ensures optimum feed rates no matter what material or thickness you are cutting.

230/460V 3 PH 23HP 63.6/31.8AMPS
Minimum length|6″
Maximum sawblade diameter|18″
Sawblade included with machine|14″
Maximum cutting thickness:|14” Blade– 3″|16” Blade–4″|18” Blade–5″
Sawblade bore|2″
Main motor|20 HP
Feed motor|3 HP

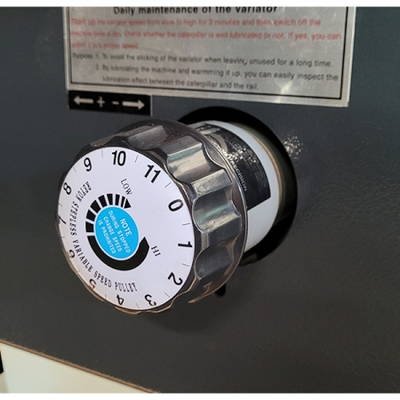

Feed speed (variable)|42~164 FPM
Saw arbor brake system|Standard
Number of pressure rolls|8 rolls
Distance from saw blade to column|26″
Table dimensions|78 ¾” x 40″
Table height from floor|33.46″
Table width to left of blade|16.73″
Table width to right of blade|23.23″
Dust ports|Top: 4″; Bottom: 6″
CFM Required|1400 CFM
Machine dimensions (LxWxH)|91″ x 66″ x 53″
Machine weight|3750 lbs
Shipping dimensions (LxWxH)|89″ x 66″ x 65″
Shipping weight|3970 lbs
Electrics|460/3/60 @ 32 Amps
