SBW24 | Cantek | Bandsaws

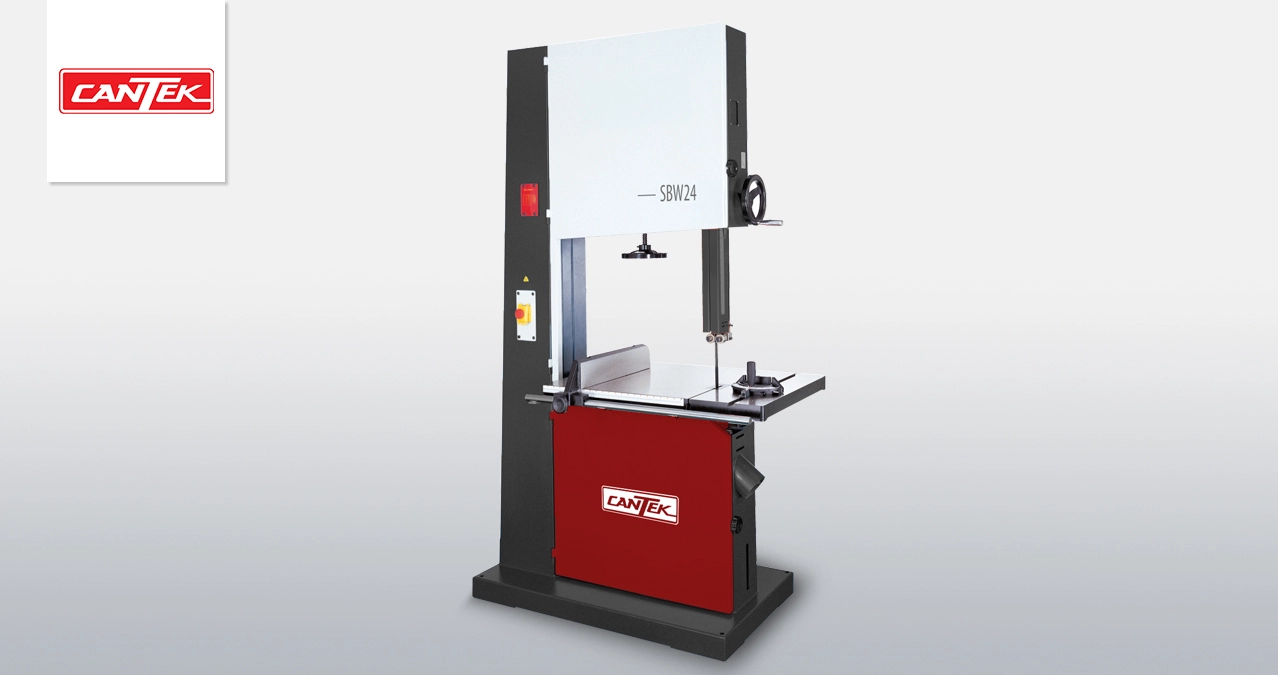

The Cantek SBW24 24″ Bandsaw incorporates a robust design with economical price point.  With its industrial cast iron wheels and table assembly it can handle any job.  With its powerful 3HP motor and capacity to run from a ¼” to 1 ½” blade it can hand a wide range of cutting requirements.  The upper and lower blade guides provide maximum stability no matter the blade you are cutting with.  This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.

5HP 220V 3PH
Motor|5HP 230V 3PH
Table Size(LXWXH)|33 1/2″ x 23 5/8″ x 2″
(850 x 600 x 50mm)
Cast Iron Wheel Size|25″ (630 mm)
Cutting Height|16″(400 mm)
Max. Cutting Width (w/o fence)|24-1/2″ (622 mm)
Max. Cutting Width (with fence)|22-1/2″(570 mm)
Saw Blade Length|181″ (4600 mm)
Saw Blade Width|1/4 ~ 1-3/8″ (6 mm – 35 mm)
Saw Blade Speed|1370 M/min (4500 FPM)
Single Speed (820 rpm)
Table Tilting|45°/20°(CE)
Table Height|33″ (830 mm)
Dust Chute|4″ x 2 pcs (100mm x 2 pcs)
Braking System|Foot pedal+Micro switch
(Electronic Braking Switch System)
Driving Belt|A type x 2 Grooves
Cast Iron Fence|1-1/4″(W) x 3-5/8″(H)
(30(W) x 90(H) mm)
Sound Rating|63-70 db
Base Size (LXWXH)|48-3/8″x 23-5/8″x 3-1/4″
(850 x 550 x 80 mm)
Machine Size(LXWXH)|47″x 29-1/2″x 81 “
(1002 x 727 x 1982 mm)
Packing Size|45-1/4″x 29-1/2″x 87″
N.W/G.W.|836/957 lbs
(380/435 kgs)
