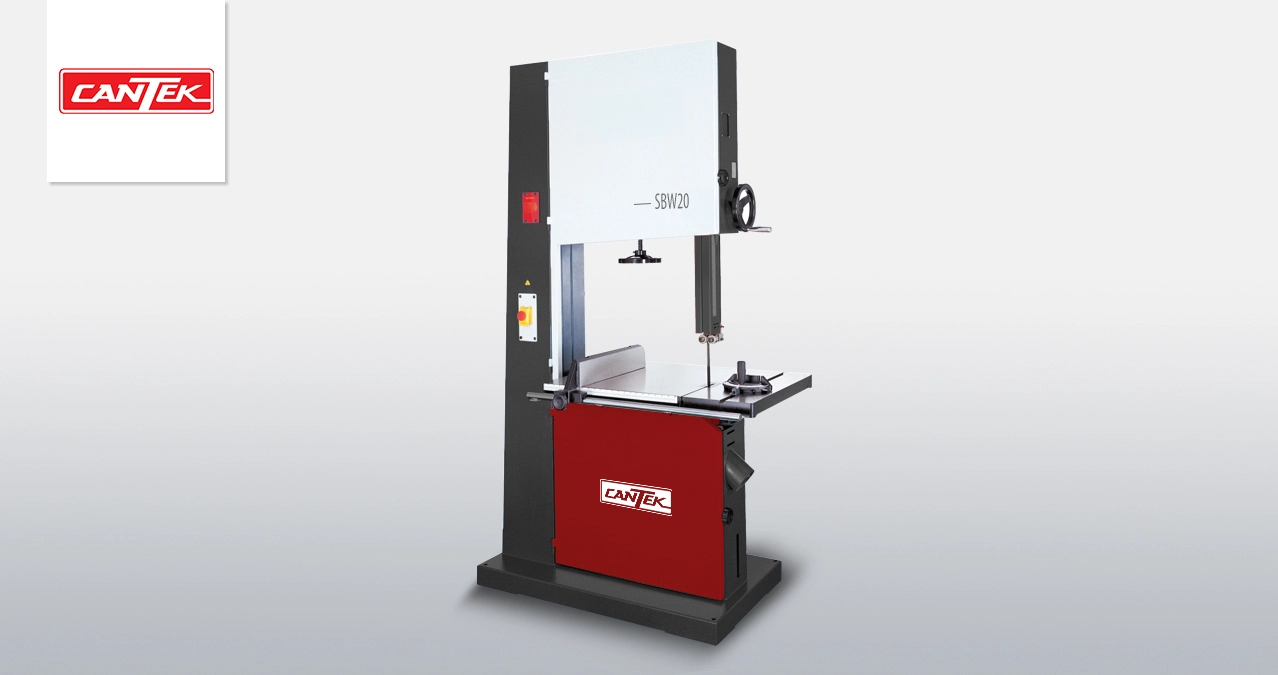

SBW20 | Cantek | Bandsaws

The Cantek SBW20 20″ Bandsaw incorporates a robust design with economical price point.  With its industrial cast iron wheels and table assembly it can handle any job.  With its powerful 3HP motor and capacity to run from a ¼” to 1 3/8” blade it can hand a wide range of cutting requirements.  The upper and lower blade guides provide maximum stability no matter the blade you are cutting with.  This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.

3HP 220V 3PH
Motor|3HP 230V 3PH
Table Size(LXWXH)|29.6″x20.8″x2″(750 x 530 x 50 mm)
Cast Iron Wheel Size|21″ (530 mm)
Cutting Height1|4″(350 mm)
Max. Cutting Width (w/o fence)|20″ (510 mm)
Max. Cutting Width (with fence)|18-1/4″(465 mm)
Saw Blade Length|165″ (4190 mm)
Saw Blade Width|1/4 ~ 1-3/8″ (6 mm – 35 mm)
Saw Blade Speed|1370 M/min (4500 FPM)
Single Speed (820 rpm)
Table Tilting|45°/20°(CE)
Table Height|35 -1/2″ (900 mm)
Dust Chute|4″ x 2 pcs (100mm x 2 pcs)
Braking System|Foot pedal+Micro switch
(Electronic Braking Switch System)
Driving Belt|A type x 2 Grooves
Cast Iron Fence|1-1/4″(W) x 3-5/8″(H)
(30(W) x 90(H) mm)
Sound Rating|63-70 db
Base Size (LXWXH)|33-1/2″x 21-5/8″x 3-1/8″
(850 x 550 x 80 mm)
Machine Size(LXWXH)|39.4″x 28.3″x 78 “
(1002 x 727 x 1982 mm)
Packing Size|39.4″x 29.1″x 94.8″
(1006 x 740 x 2410 mm)
N.W/G.W.|580 / 678 lbs
(264 / 308 kgs)
