SBW17 | Cantek | Bandsaws

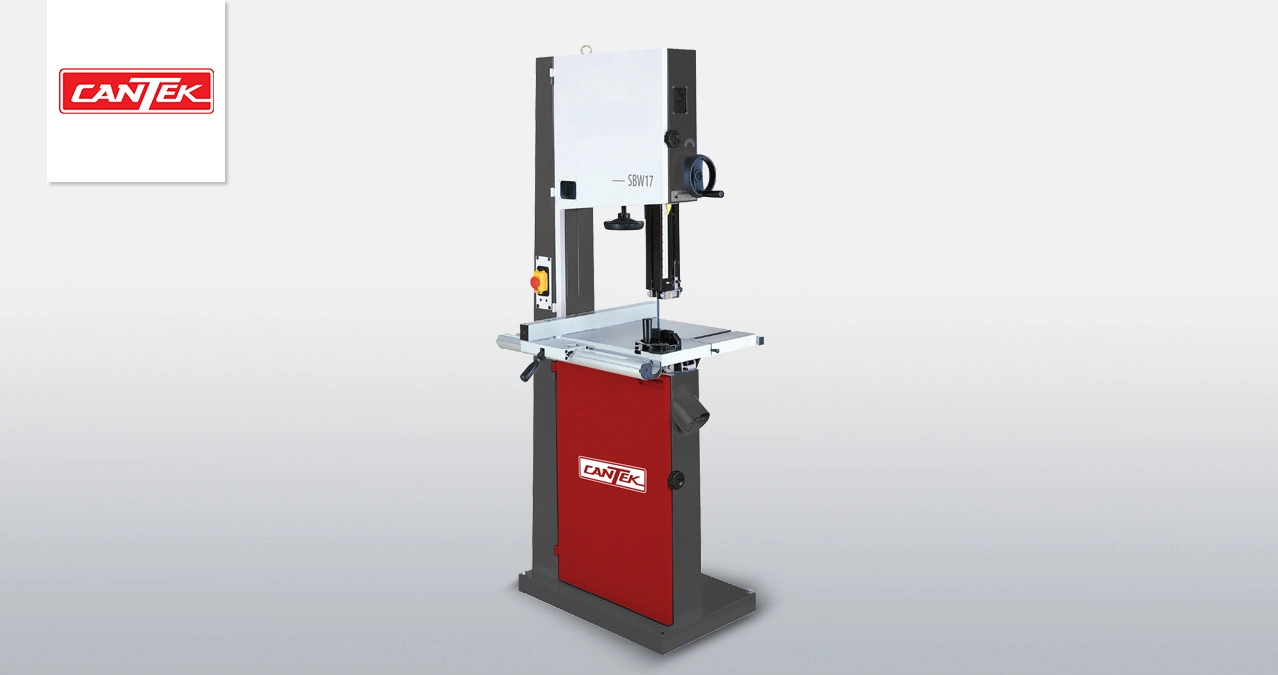

The Cantek SBW17 17″ Bandsaw is a good step up from the smaller 14” SBW14 with bigger cutting capacity and extra features. The ball bearing guides ensure optimal stability with reduced friction and the upper guide system can be conveniently adjusted by a handwheel / rack & pinion system.  The quick action lever tensioning system makes blade changes a snap.  The aluminum rip fence adjusts easily and accurately for repeatable cuts.  The tilting table allows you the ability to cut tapers & bevels with ease. Capable of running blades from 3/8” to 1” provides you the versatility to cut radius shapers and also perform precise straight cutting.

2HP 220V 1PH
Motor|2HP(1.5KW)
Table Size|17″ X 17″(430 x 430mm) Wheel Size|17″(430mm)
Cutting Height|12″(300mm)
Max. Cutting Width|16-1/4″(410mm)
Max. Cutting (Rip Fence)|14-5/8″(370mm) Saw Blade Length|131-1/2″
Saw Blade Width|3/8″ to 1″(9.5mm to 25.4mm)
Saw Blade Speed|(3300/1600sfpm) (1000/490 m/min)
Table Tilting|Left-10° / Right-45°
Table Height From Ground|37 1/2″ (950mm)
Dust Chute Diameter|4″(100mm) X 2
Machine Size (LXWXH)|32 x 26 x 74″(820 x 670 x 1880mm) Packing Size (LXWXH)|30 x 20 x 80″(770 x 510 x 2040mm) N.W/G.W.|266 / 321 lbs(121 / 146 kgs)
