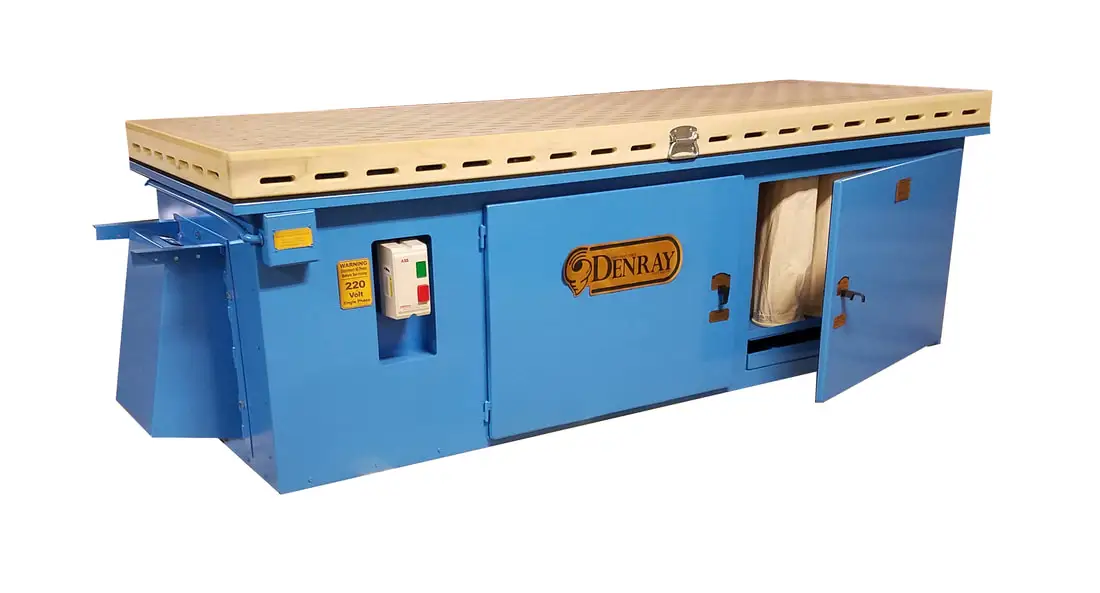

This model is great for medium sized jobs and is ideal for wood dust. The 3696 model comes with tube filtration which cleans with a 99% capture rate at 1 micron, making this model suitable for all wood applications. This model also comes standard with filter cleaner brush/handle, casters, and a rubber coated top.
2HP 115/220V 1PH- 230/460V 3PH
•36″ x 96″
•36″ HEIGHT
•750 LBS
•2 HP MOTOR
•16.5″ FAN
•3800 CFM
•78 DECIBELS SOUND LEVEL
•24 TUBE FILTERS
•CASTERS
•4 RECEPTACLES PHASE/VOLTAGE OPTIONS
SINGLE-PHASE
115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE-PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)
