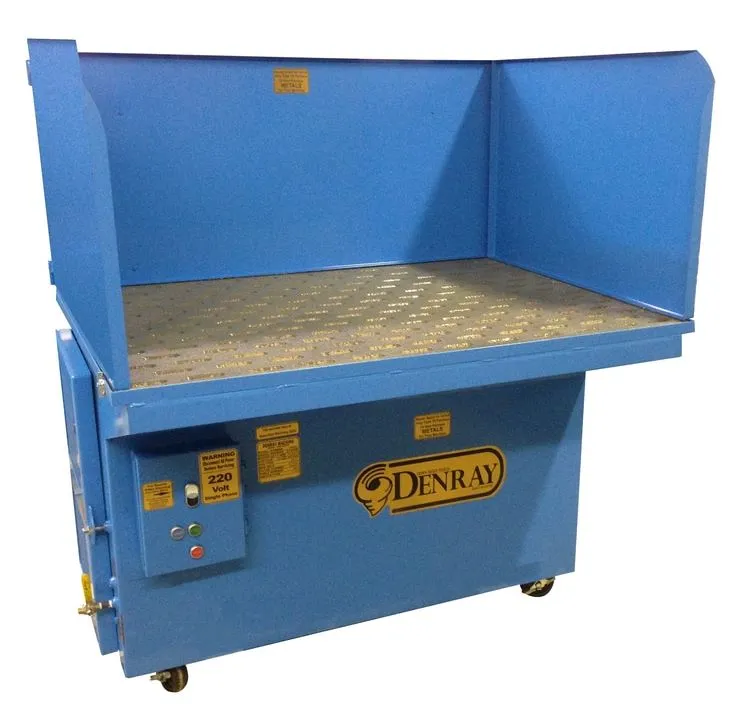

3648SD | Denray | Downdraft Tables

This model is perfect for small shops, accommodating situations where sitting is preferred. Complete with Denray “Jet Pulse” push-button cleaning, the 3648SD comes with 80/20 cartridge filter that cleans at 99.95% capture rate at .5 micron efficiency. This model comes standard with casters, rubber coated top, and three sided 20″ safety shield.

•36″ x 48″
•34″ HEIGHT
•530 LBS
•1.5 HP MOTOR (1PH)
​or 2 HP MOTOR (3PH)
•15″ FAN
•2400 CFM
•65 DECIBELS SOUND LEVEL
​•CASTERS
•MAG. GAUGE PHASE/VOLTAGE OPTIONS
SINGLE-PHASE
115 VOLTAGE (18.8 AMPS)
220 VOLTAGE (9.4 AMPS)
THREE-PHASE
230 VOLTAGE (5.8 AMPS)
460 VOLTAGE (2.9 AMPS)
575 VOLTAGE (2.4 AMPS)
