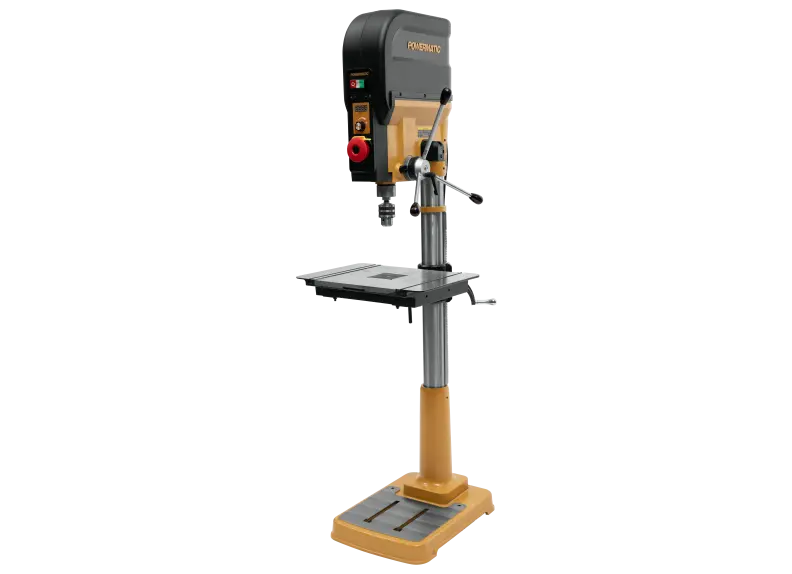

PM2820EVS | Powermatic | Drill Presses

Gear up for the Ultimate Performance with the Powermatic PM2820EVS Drill Press. The gear driven power transfers torque consistently and efficiently for any project in a wide range of materials. A removable cast table with 45 degree rotation has capacity for projects large and small. The high visibility laser pinpoints the drilling location for total accuracy. Included fence and stop help make repeat and production drilling efficient. Handles can be moved to right or left for ease of use. Oversized cast base give this drill press stability. Integrated LED light reduces shadows for project visibility.

1HP 1PH 120V
Stock Number|1792820
Base Dimensions (In.)|22.7 x 16.33 x 2.75
Base Size (In.)|22-3/4 x 16-3/8 x 2-3/4
Base Work Table (In.)|11.81 x 12.05
Chuck Distance to Base (In.)|41-1/4
Chuck Distance to Table (In.)|19-1/4
Chuck Size (In.)|5/8
Column Diameter (In.)|3-3/8
Fence Size (L x H) (In.)|19-3/4 x 2-5/8
Gross Weight (Lbs)|413.6
Motor Amps|8
Motor (HP)|1
Motor Power (HP)|1
Motor Voltage (V.)|120
Net Weight (Lbs.)|336.6
Number of Spindle Speeds|2 Variable
Overall Dimensions (L x W x H) (In.)|24.5 x 20.5 x 71.85
Prewired Voltage (V.)|115
Prop 65| Cancer and Reproductive Harm
Quill Diameter (In.)|2.6
Spindle Distance to Base (In.)|45
Spindle Distance to Table (Max.) (In.)|23
Spindle Speed (RPM)|150 – 3600
Spindle Taper|MT2
Spindle Travel (In.)|6
Style (Type)|Floor
Swing (In.)|20
Table Size Fully Extended (L x W) (In.)|20-1/2 x 15-1/2
Table Size (L x W) (In.)|20-1/2 x 15-1/2
Table Tilt (Deg.)|90 L/R
