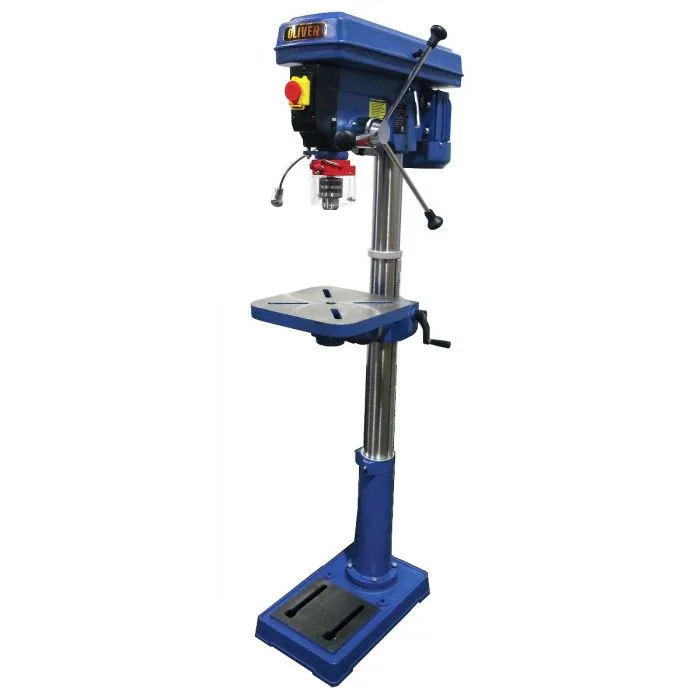

10062 | Oliver | Drill Presses

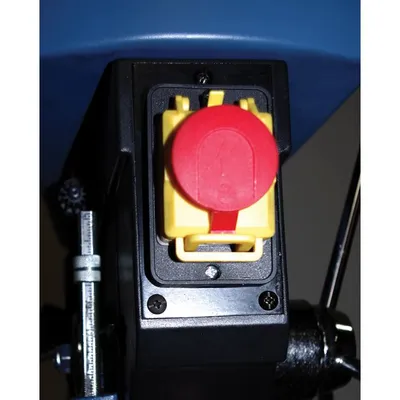

•Line interrupt switch requires manual start in the event of a power loss.

115V 1PH 3/4HP 12AMPS
Type|17” Floor
Swing|17”
Drilling Capacity|3/4”
Chuck Capacity|5/8”
Chuck Taper|JT-3
Table Size|12” x 12”
Table Tilt|+/- 45°
Spindle Taper|MT-2
Spindle Travel|3-1/8”
Spindle Speeds |16
Speed Range RPM|240 to 3,400
Spindle to Table|28”
Spindle to Base |48-1/2”
Column Diameter|3-1/8”
Base Size|11-3/4” x 19-5/8”
Overall Height|64-1/2”
Motor|3/4HP 1Ph 115V (12 Amps)
Net Weight|200 lbs.
Gross Weight|215 lbs.
