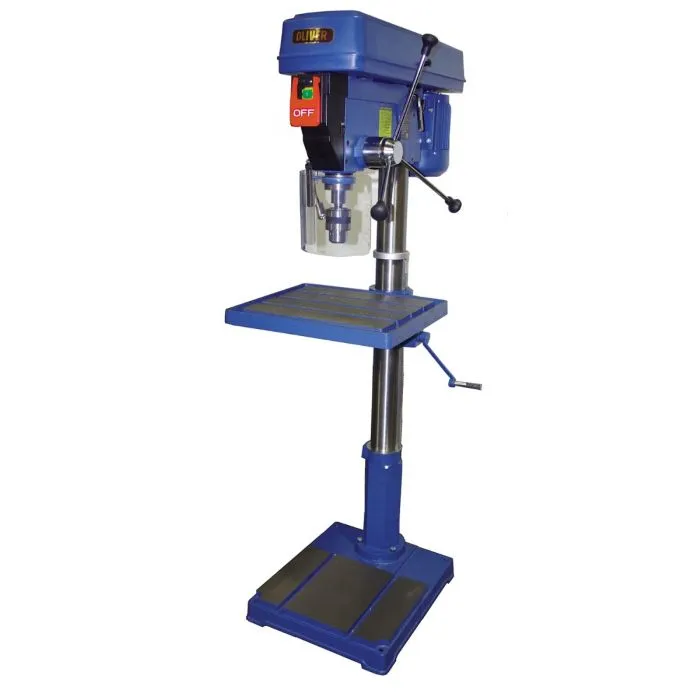

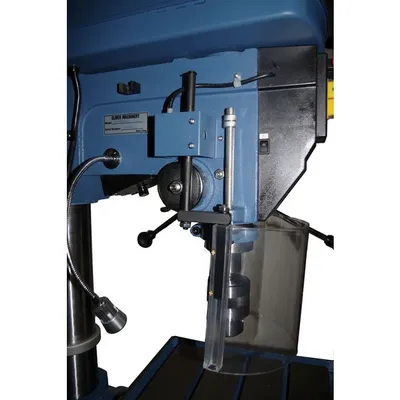

10063 | Oliver | Drill Presses

•Line interrupt switch requires manual start in the event of a power loss.

115V 1PH 1.5HP 21AMPS
Type|22” Floor
Swing|22”
Drilling Capacity|1-1/4”
Chuck Capacity|3/4”
Chuck Taper|JT-3
Table Size|16” x 18-1/2”
Table Tilt|+/- 45°
Spindle Taper|MT-3
Spindle Travel|4-1/2”
Spindle Speeds|12
Speed Range RPM|180 to 3,420
Spindle to Table|26-3/4”
Spindle to Base |48”
Column Diameter|3-7/8”
Base Size|19-5/8” x 22-3/4”
Overall Height|68-3/4”
Motor|1.5HP, 1Ph, 115V (21 Amps)
Net Weight|380 lbs.
Gross Weight|395 lbs.
