10061 | Oliver | Drill Presses

•Available in bench or floor model version. (Bench model number is 10060)

115V 1PH 1/2HP 8AMPS
Type|14” Floor
Swing|13-1/4”
Drilling Capacity|3/4”
Chuck Capacity|5/8”
Chuck Taper|JT-3
Table Size|11-1/2” Round
Table Tilt|+/- 45°
Spindle Taper|MT-2
Spindle Travel|3-1/8″

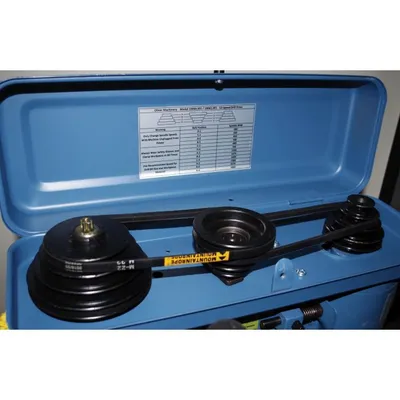

Spindle Speeds|12
Speed Range RPM|280 to 3,000
Spindle to Table|31-1/2”
Spindle to Base |48-1/2”
Column Diameter|2-7/8”
Base Size|10-1/2” x 16-3/4”
Overall Height|62”
Motor|1/2HP, 1Ph 115V (8 Amps)
Net Weight|126 lbs.
Gross Weight|135 lbs.
