G320B | Leadermac | Moulders

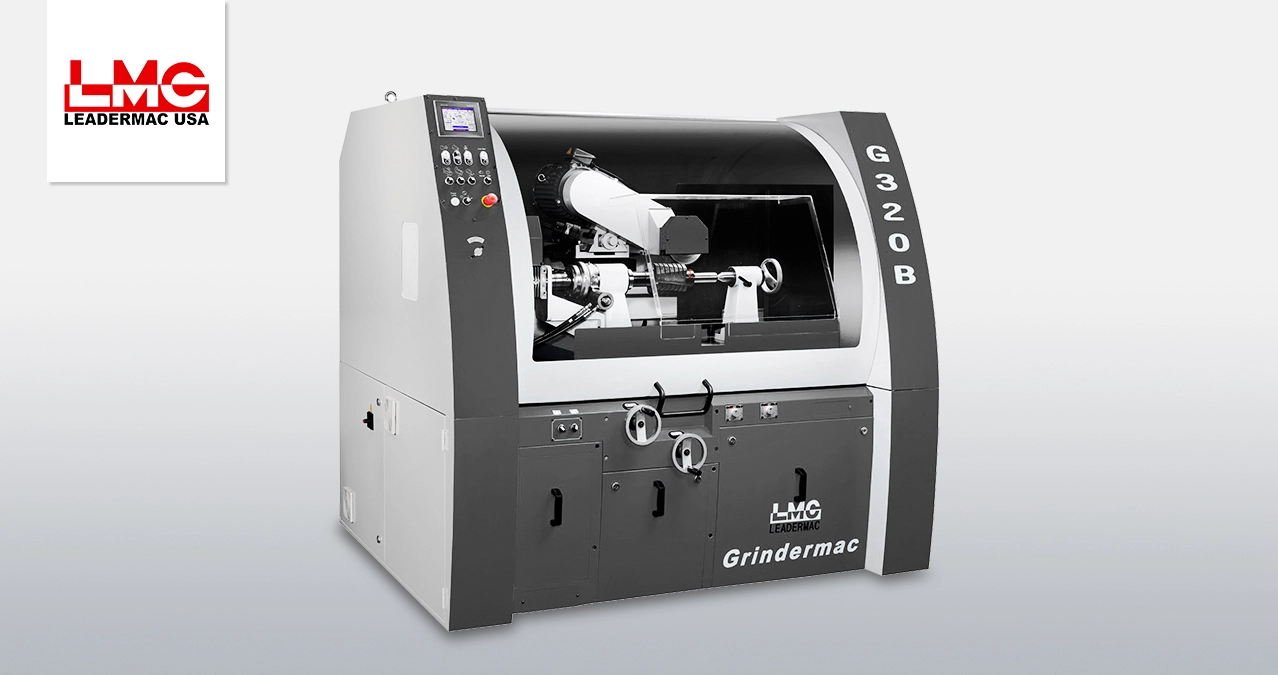

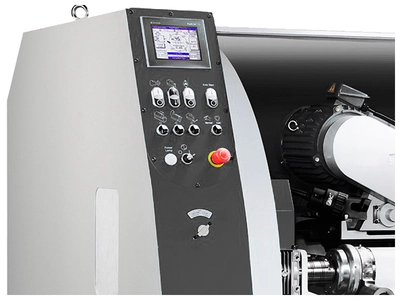

Advanced grinding with features that increase grinding accuracy and efficiency. The Leadermac G320B Automatic Cutterhead Grinder is an advanced grinder that features fully automatic grinding operations and PLC control for high grinding accuracy.

Machine Capacity
Maximum Length of Cutterhead|12.6”|320 mm (longer optional)
Maximum Swing of Cutterhead|14”|350 mm
Minimum Swing of Cutterhead| 5”|125 mm
Maximum number of knives|32
Grinding Wheel
Diameter|6.9”|175 mm
Bore|1”|25.4 mm

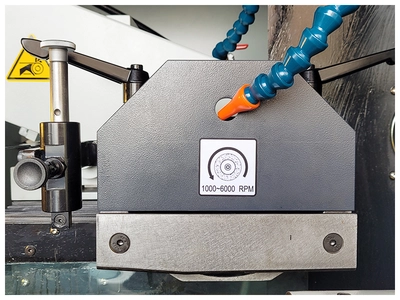

Spindle Speed (synchronous)|1,000 – 6,000 RPM
Machine Table
Traverse Speed (infinitely variable)|2 – 10 FPM
|0.6 – 3m/min
Indexing Unit
Indexing Rate|1 RPM standard and 4 RPM for 8 knives or less
Motor Outputs
Grinding Spindle|5 HP|3.75 kw
Hydraulic Motor(Table Feed)|1 HP|0.75 Kw
Coolant pump|0.25 HP|0.188 Kw
Coolant System Tank capacity
Maximum|6.15 gal.|23 litres
Minimum|3.5 gal.|11 litres
Machine Dimensions
Height|74.8”|1,800 mm
Length|78.1”|1,985 mm
Depth|64.8”|1,645 mm
Weight|2,453 lbs.|1115 kg.
Electrics
460/3/60 to CSA/UL Standards
