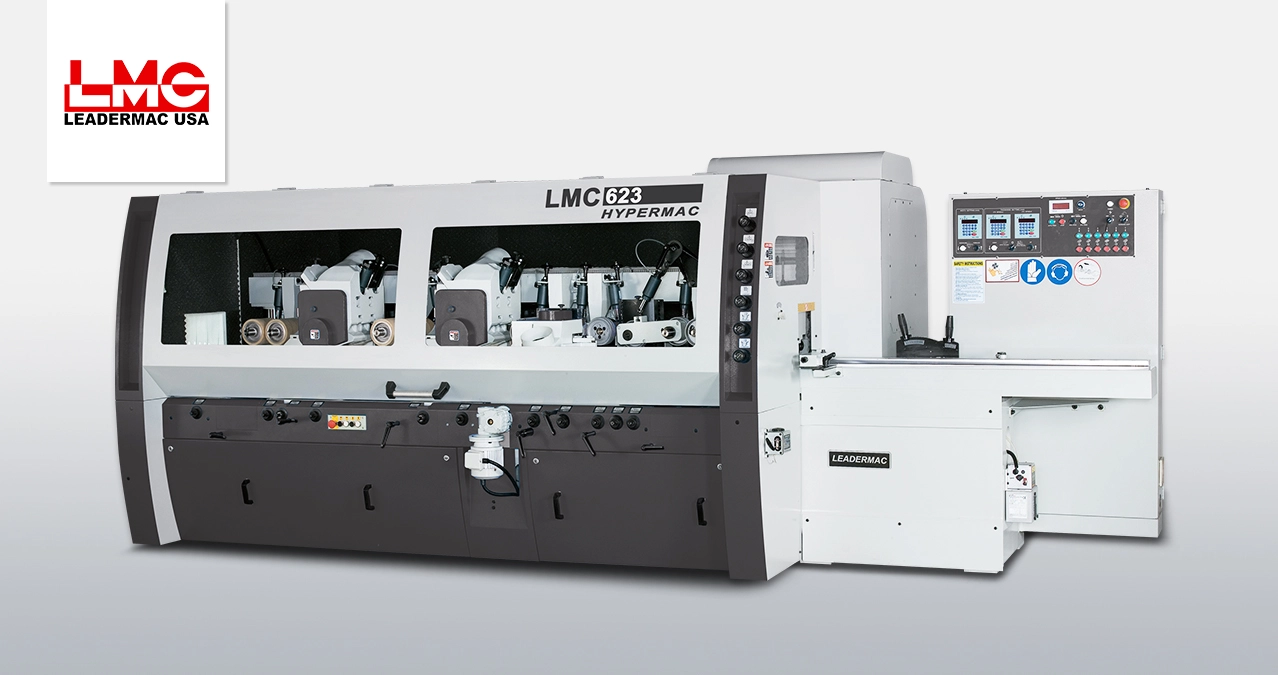

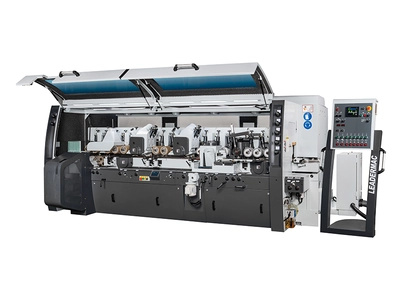

HYPERMAC SERIES | Leadermac | Moulders
Overview
Description

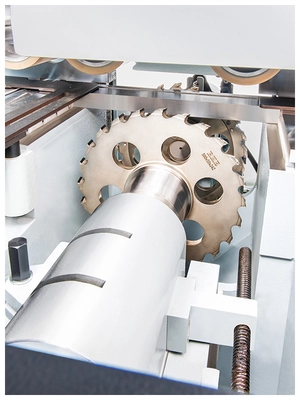

Heavy-duty non jointed moulder, for the most complex mouldings, or most difficult material types, wet or dry. The Leadermac Hypermac Moulder Series has been designed to ensure a high-quality finish, with a range of options to meet your particular needs. The Hypermac moulder is commonly brought in with 8000 rpm spindles, allowing you to run 33% faster than a 6000 rpm machine, producing an excellent quality finish. Its larger cutterhead swing allows for heavier and deeper cuts for the most complex of mouldings. It is a tight coupled machine to ensure total control and smooth feeding of the workpiece as it passes thru. Many powerful features come standard with the Hypermac ensuring fast and repeatable setups with reduced changeover time, allowing you to meet your production requirements day in and day out.
Specifications
Working widths|0.6″ to 9″, 12″, 13″, and 15.75″ optional
Working thickness|0.25″ to 6″, 8” or 12” optional
Number of spindles|1 to 11
Spindle RPM|6000, 7200 or 8000 RPM
Standard feed speed|20 to 130 FPM (Faster opt)
Minimum part length|8″ (butt to butt)
Axial adjustment of vertical spindles|3.2″ (standard)
Axial adjustment of horizontal spindles|1.6″ (standard)
Infeed bed length|78″ (2m) – standard. 98″ (2m), 120″ (2.5m), or 158″ (4m)
