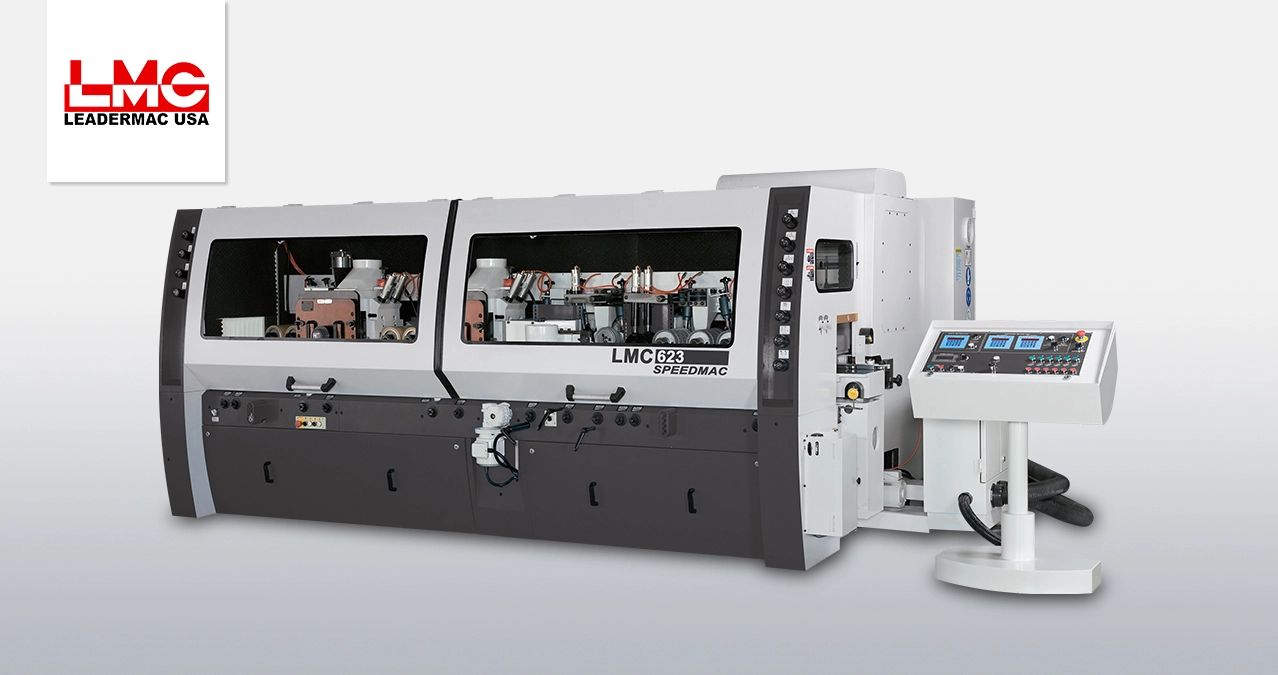

SPEEDMAC SERIES | Leadermac | Moulders

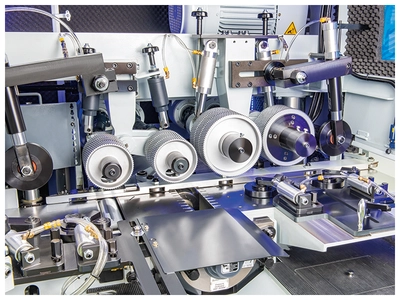

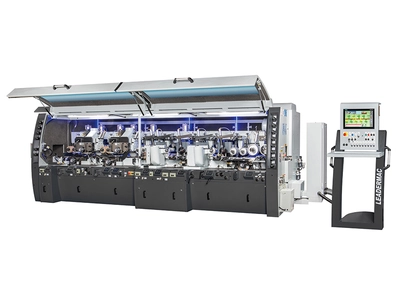

Heavy-duty jointed moulder for high speed production of finished mouldings and planed lumber. The Leadermac Speedmac Moulder Series has been designed very heavily to run at high speeds, with a range of options to meet your particular needs. The Speedmac moulder is available with profile and straight jointers and feed speeds up to 400 fpm to produce an excellent finish. The feed system is designed to handle rough or pre-sized material, and built to run in demanding multiple shift operations for maximum uptime.

Working widths|0.6″ to 9″, 10.2”, 12”, 13”, and 15.75” optional
Working thickness|0.25″ to 6″, 8” or 12” optional
Number of spindles|1 to 11
Spindle RPM|6000, 7200 or 8000 RPM
Standard feed speed|20 to 200, 260, 300 or 400 FPM
Minimum part length|8″ (butt to butt)
Axial adjustment of vertical spindles|3.2″ (standard)
Axial adjustment of horizontal spindles|1.6″ (standard)
Infeed bed length|32” (.8m), 55” (1.4m), 78″ (2m) 98″ (2.5m), 120″ (3m), or 158” (4m) available
