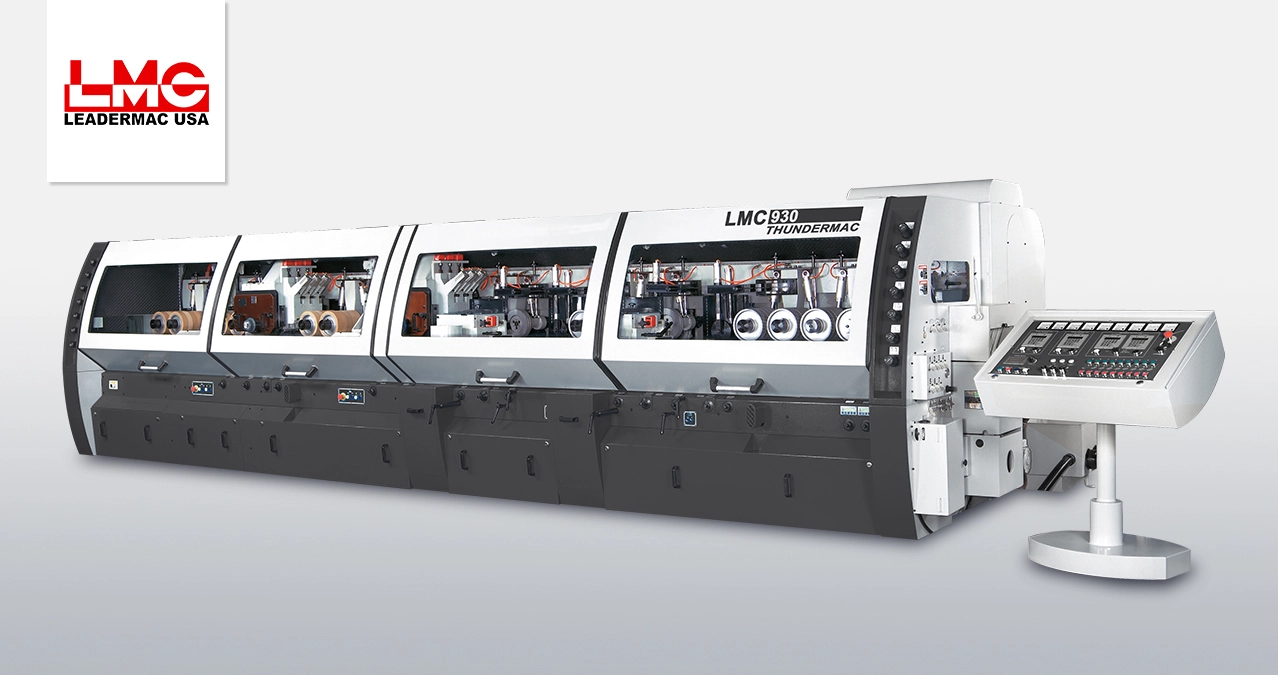

THUNDERMAC SERIES | Leadermac | Moulders

A heavy duty, jointed, high speed moulder designed for the production of flooring, finished mouldings, and basic four-sided planing of lumber. The Leadermac Thundermac Moulder Series is a heavy duty moulder designed to run at high speeds and with the ability to handle a wide range of applications to meet your requirements. The Thundermac moulder is available with profile and straight jointers and has feed speeds from 200 to 650 fpm, producing an excellent quality finish. The feed system is designed to handle rough or pre-sized material and is built to run in demanding multiple shift operations, ensuring maximum uptime.

Working widths |0.6″ to 9″, 12”, 13”, and 15.75” optional
Working thickness|0.25″ to 6″, 8” optional
Number of spindles|1 to 11
Spindle RPM|6000, 7200 or 8000 RPM
Standard feed speed|20 to 200, 260, 300 or 660 FPM
Minimum part length|8″ (butt to butt)
Axial adjustment of vertical spindles|3.2″ (standard)
Axial adjustment of horizontal spindles|1.6″ (standard)
Infeed bed length|32” (.8m), 55” (1.4m), 78″ (2m) 98″ (2.5), 120″ (3m)
