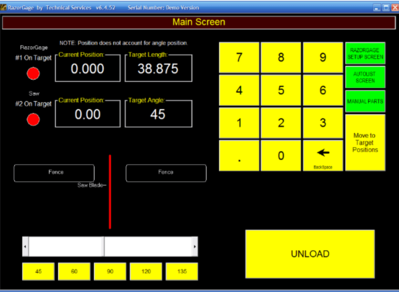

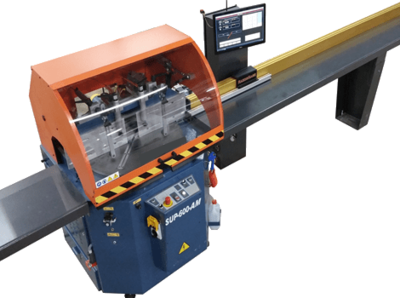

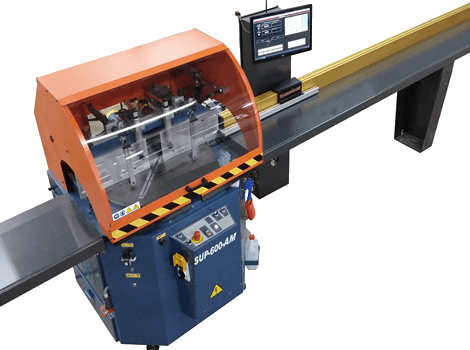

Looking for a saw that cuts angles? The RazorGage AngleMaster is a semi-automatic miter saw fence system that automatically adjusts to cut your leading and trailing angle. The AngleMaster angle saw software with integrated AutoList combines with the computerized miter saw hardware to enable effortless, accurate angle cutting. Using the AngleMaster Semi-Automatic Miter SawThe operator selects a cutlist from those downloaded from the office or manually enters the leading and trailing angles, length, & width, required for a single part. The RazorGage positioner advances the material and rotates the saw to the correct leading angle. The operator makes sure the clamps are adjusted correctly, cycles the saw, clears any small jamb-prone drops from the table and clicks DONE on the hi-resolution touchscreen. The RazorGage positioner then advances the material and rotates the saw to make the trailing edge cut. Once positioning of material and blade is complete the operator makes sure the material is against the fence and the pusher, engages the clamps, and cycles the saw. Repeat the process.
5.5HP 230/460V 3PH
•Windows Tower PC operation on a large, color hi-resolution touchscreen monitor
•Download cutlists directly to the RazorGage AngleMaster computer via Wi-Fi or wired Ethernet cable

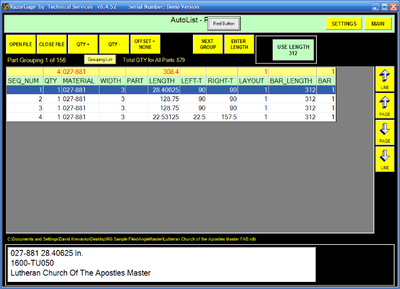

•Store thousands of cutlists on the computerized miter saw software. Optimize and sort cutlists into thousands of groups according to various criteria
•Label printer option available
•AngleMaster Angle Saw System comes with a PVC table top, but optional steel or PVC rollers are available
•Optional articulated pusher mounted gripper
•Blade mist lubrication standard for cutting aluminum
